Long D Shackle with No Snag Pin
Long D Shackle with No Snag Pin

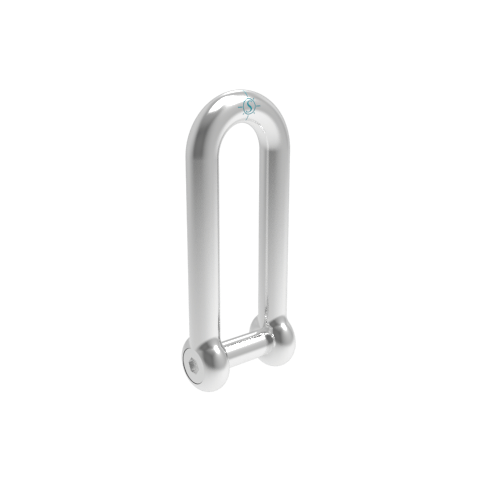

The Stainless Steel Long D Shackle with No Snag Pin provides a secure connection while reducing the risk of snagging on lines, clothing, sails, and deck hardware. Its flush-mounted pin sits within the shackle body for a smooth, low-profile design. Manufactured from grade 316 stainless steel, this long D shackle delivers excellent corrosion resistance and long-lasting durability. Choose from sizes ranging from 1/4" to 1/2" to match your application. Use this stainless steel shackle for marine, industrial, architectural, and general hardware projects. It performs well on sailboats, yachts, docks, rigging systems, and other demanding environments.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0138-NS06 | 1/4" | 0.23" | 0.49" | 1.74" | 1.01" | 2.40" | 0.48" | 750 | 0.08 | $5.16 |
|
|
| S0138-NS08 | 5/16" | 0.31" | 0.68" | 2.31" | 1.34" | 3.17" | 0.64" | 1,000 | 0.19 | $7.86 |
|
|
| S0138-NS10 | 3/8" | 0.38" | 0.78" | 2.88" | 1.65" | 3.95" | 0.79" | 1,200 | 0.35 | $13.49 |
|
|
| S0138-NS12 | 1/2" | 0.47" | 0.93" | 3.50" | 1.96" | 4.68" | 0.95" | 1,500 | 0.58 | $24.98 |
|
