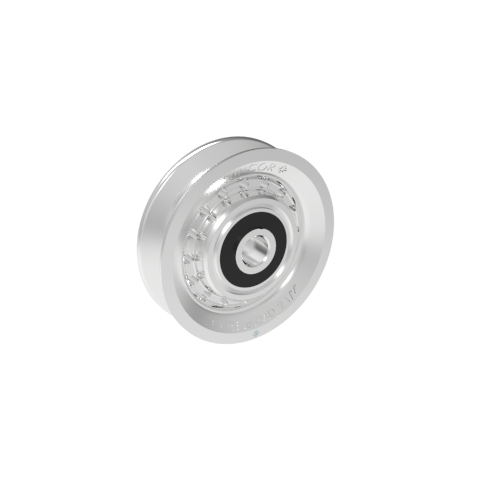

PULLPRO® LoLOAD Wire Rope Sheave, Bearing
PULLPRO® LoLOAD Wire Rope Sheave, Bearing
The PULLPRO® LoLOAD Wire Rope Sheave with Bearing delivers strength, precision, and lasting performance. It features a 440C hardened stainless steel ball bearing for smooth, reliable operation. This sheave fits wire rope sizes from 3/16″ to 3/8″. Made from 316 stainless steel, it resists corrosion in tough environments. The LoLOAD design uses a smaller diameter for economical turns under 90 degrees. It performs best in low deflection setups with a lower D/d ratio. PULLPRO® stainless steel sheaves are tough, safe, and built to last.
| ITEM | A (wire size) | B (bore) | C (rim width) | D | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0417-0507 | 3/16″ | 0.25″ | 0.51″ | 1.50″ | 0.59″ | 2.00″ | 2.00″ | 1,000 | 0.24 | $36.54 |
|
|
| S0417-0710 | 1/4″ | 0.38″ | 0.63″ | 1.90″ | 0.71″ | 2.50″ | 2.50″ | 1,500 | 0.47 | $48.20 |
|
|
| S0417-0813 | 5/16″ | 0.50″ | 0.77″ | 2.33″ | 0.86″ | 3.13″ | 3.13″ | 2,000 | 0.76 | $78.35 |
|
|
| S0417-1013 | 3/8″ | 0.50″ | 0.77″ | 3.04″ | 0.86″ | 4.00″ | 4.00″ | 3,000 | 1.18 | $103.87 |
|
