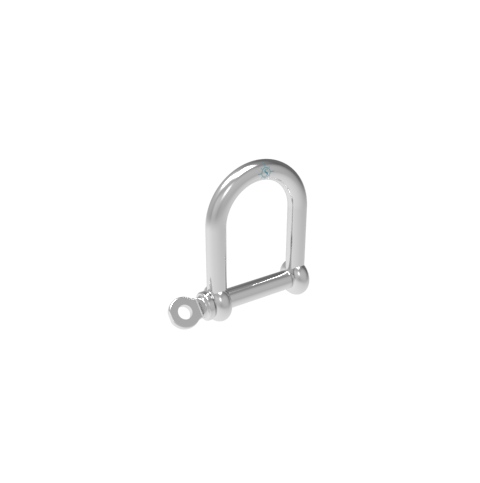

Wide D Shackle with Screw Pin
The Wide D Shackle features a screw pin and is offered in sizes ranging from 1/4″ to 1/2″. This D shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.
| ITEM | A (size) |
B | C | D | WLL (lb) |
WT (lb) |
Your Price | |
|---|---|---|---|---|---|---|---|---|
| S0114-0006 | 1/4″ | 0.24″ | 0.92″ | 1.13″ | 750 | 0.08 | $5.24 | |
| S0114-0008 | 5/16″ | 0.32″ | 1.11″ | 1.22″ | 1,000 | 0.14 | $8.35 | |
| S0114-0010 | 3/8″ | 0.40″ | 1.54″ | 2.14″ | 1,200 | 0.33 | $14.45 | |
| S0114-0012 | 1/2″ | 0.47″ | 1.89″ | 2.59″ | 1,500 | 0.56 | $20.74 | |
