Anchor Shackle
Anchor Shackle

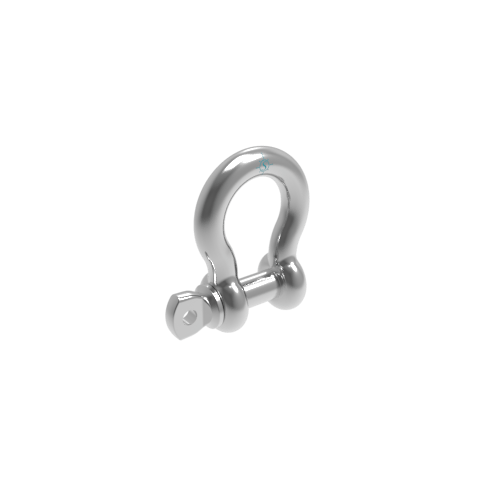

The Stainless Anchor Shackle features an oversize screw pin for added strength and security. Made from 316-NM stainless steel, it resists corrosion in saltwater environments. Use this shackle to connect anchors to chain in marine applications where durability and reliability are essential.
| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0116-FS05 | 3/16" | 0.26" | 0.41" | 0.83" | 0.61" | 1.25" | 1.43" | 0.53" | 650 | 0.06 | $3.53 |
|
|
| S0116-FS07 | 1/4" | 0.31" | 0.47" | 1.11" | 0.75" | 1.56" | 1.80" | 0.61" | 1,000 | 0.10 | $4.47 |
|
|
| S0116-FS08 | 5/16" | 0.38" | 0.53" | 1.20" | 0.80" | 1.84" | 2.06" | 0.73" | 1,300 | 0.16 | $7.38 |
|
|
| S0116-FS10 | 3/8" | 0.44" | 0.66" | 1.41" | 1.00" | 2.26" | 2.42" | 0.92" | 1,500 | 0.29 | $12.87 |
|
|
| S0116-FS12 | 7/16" | 0.50" | 0.72" | 1.77" | 1.10" | 2.89" | 2.50" | 1.01" | 2,000 | 0.42 | $16.52 |
|
|
| S0116-FS13 | 1/2" | 0.63" | 0.82" | 1.83" | 1.20" | 2.90" | 3.20" | 1.17" | 3,000 | 0.67 | $26.87 |
|
|
| S0116-FS16 | 5/8" | 0.75" | 1.02" | 2.41" | 1.60" | 3.41" | 4.18" | 1.46" | 4,000 | 1.27 | $43.44 |
|
|
| S0116-FS20 | 3/4" | 0.88" | 1.25" | 2.84" | 1.90" | 4.90" | 3.90" | 1.74" | 6,000 | 2.11 | $81.55 |
|
|
| S0116-FS22 | 7/8" | 1.00" | 1.48" | 3.30" | 2.20" | 5.75" | 4.78" | 1.92" | 8,000 | 3.23 | $102.92 |
|
|
| S0116-FS25 | 1" | 1.13" | 1.70" | 3.80" | 2.60" | 5.35" | 6.44" | 2.20" | 10,000 | 4.62 | $150.17 |
|
|
| S0116-FS32 | 1-1/4" | 1.38" | 2.03" | 4.69" | 3.20" | 6.69" | 7.85" | 2.77" | 14,000 | 9.58 | $489.57 |
|
