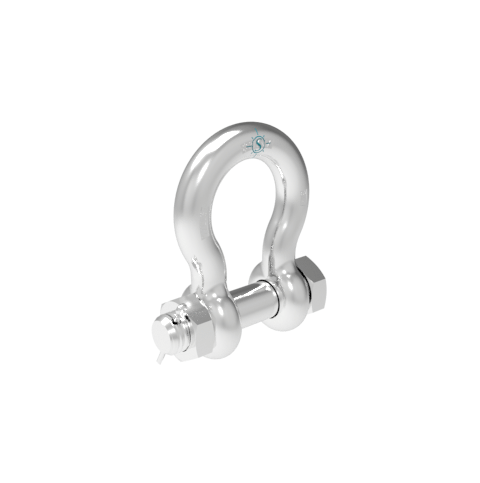

US Bolt Anchor Shackle
US Bolt Anchor Shackle
The USA Stainless Bolt Anchor Shackle features 316-NM stainless steel for superior durability and corrosion resistance. Made in the USA, it includes an oversized bolt for extra strength and security. This shackle is perfect for boating, sailing, and marine rigging, providing a reliable connection between anchors, chains, and swivels. Built for harsh marine environments, it ensures long-lasting performance in saltwater conditions.
| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0116-SA07-US | 1/4" | 0.31" | 0.47" | 1.11" | 0.75" | 1.66" | 1.79" | 0.61" | 1,000 | 0.12 | $29.01 |
|
|
| S0116-SA08-US | 5/16" | 0.38" | 0.53" | 1.20" | 0.80" | 1.81" | 2.07" | 0.74" | 1,300 | 0.18 | $30.81 |
|
|
| S0116-SA10-US | 3/8" | 0.44" | 0.66" | 1.41" | 1.00" | 2.24" | 2.40" | 0.89" | 1,500 | 0.32 | $38.11 |
|
|
| S0116-SA12-US | 7/16" | 0.50" | 0.72" | 1.77" | 1.10" | 2.65" | 2.92" | 1.01" | 2,000 | 0.47 | $47.36 |
|
|
| S0116-SA13-US | 1/2" | 0.63" | 0.82" | 1.83" | 1.20" | 2.86" | 3.21" | 1.16" | 3,000 | 0.76 | $67.45 |
|
|
| S0116-SA16-US | 5/8" | 0.75" | 1.02" | 2.41" | 1.60" | 3.67" | 4.21" | 1.46" | 4,000 | 1.45 | $107.18 |
|
|
| S0116-SA20-US | 3/4" | 0.88" | 1.25" | 2.84" | 1.90" | 4.21" | 4.92" | 1.73" | 6,000 | 2.42 | $178.90 |
|
|
| S0116-SA22-US | 7/8" | 1.00" | 1.48" | 3.30" | 2.20" | 4.85" | 5.73" | 1.94" | 8,000 | 3.66 | $227.75 |
|
|
| S0116-SA25-US | 1" | 1.13" | 1.70" | 3.80" | 2.60" | 5.15" | 6.46" | 2.20" | 10,000 | 5.09 | $365.79 |
|
|
| S0116-SA32-US | 1-1/4" | 1.38" | 2.03" | 4.69" | 3.20" | 7.22" | 8.15" | 2.77" | 14,000 | 10.79 | $700.17 |
|
