Bolt Chain Shackle
Bolt Chain Shackle

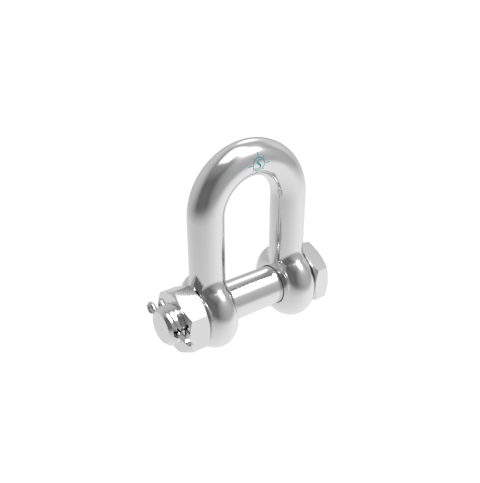

The Stainless Bolt Chain Shackle features an oversize bolt for secure, heavy-duty fastening. Made from 316-NM stainless steel, it resists corrosion in harsh conditions. Available in multiple sizes, this shackle is a great choice for marine and industrial use.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0115-SA07 | 1/4" | 0.31" | 0.46" | 0.87" | 1.59" | 1.55" | 0.61" | 1,000 | 0.10 | $18.19 |
|
|
| S0115-SA10 | 3/8" | 0.44" | 0.65" | 1.24" | 2.28" | 2.24" | 0.90" | 1,500 | 0.30 | $24.71 |
|
|
| S0115-SA20 | 3/4" | 0.88" | 1.20" | 2.40" | 4.18" | 4.40" | 1.72" | 6,000 | 2.20 | $108.17 |
|
|
| S0115-SA08 | 5/16" | 0.38" | 0.52" | 1.02" | 1.80" | 1.85" | 0.72" | 1,300 | 0.16 | $18.97 |
|
|
| S0115-SA12 | 7/16" | 0.50" | 0.75" | 1.43" | 2.62" | 2.62" | 1.00" | 2,000 | 0.43 | $30.31 |
|
|
| S0115-SA13 | 1/2" | 0.63" | 0.79" | 1.58" | 2.87" | 2.93" | 1.18" | 3,000 | 0.72 | $42.26 |
|
|
| S0115-SA16 | 5/8" | 0.75" | 1.05" | 1.94" | 3.61" | 3.64" | 1.45" | 4,000 | 1.31 | $65.73 |
|
|
| S0115-SA22 | 7/8" | 1.01" | 1.45" | 2.88" | 4.84" | 5.25" | 1.94" | 8,000 | 3.41 | $145.62 |
|
|
| S0115-SA25 | 1" | 1.13" | 1.67" | 3.20" | 5.18" | 5.85" | 2.19" | 10,000 | 4.69 | $413.64 |
|
