Bow Shackle with No Snag Pin
Bow Shackle with No Snag Pin

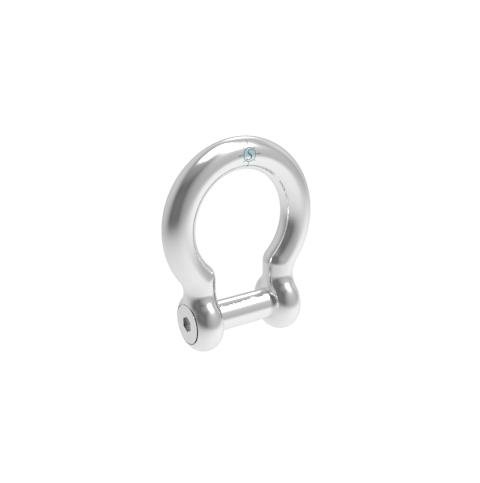

The Stainless Bow Shackle features a no-snag pin that sits flush with the shackle body to prevent catching on lines or gear. It’s available in sizes from 1/4″ to 1″ for various applications. Made from 316 stainless steel, this shackle resists corrosion and delivers long-lasting performance in marine and industrial environments.
| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0116-NS06 | 1/4" | 0.24" | 0.47" | 1.06" | 0.80" | 1.29" | 1.63" | 0.46" | 750 | 0.05 | $6.46 |
|
|
| S0116-NS08 | 5/16" | 0.31" | 0.67" | 1.46" | 1.05" | 1.76" | 2.23" | 0.63" | 1,000 | 0.15 | $8.47 |
|
|
| S0116-NS10 | 3/8" | 0.39" | 0.79" | 1.77" | 1.25" | 2.17" | 2.73" | 0.76" | 1,200 | 0.28 | $14.26 |
|
|
| S0116-NS12 | 15/32" | 0.48" | 0.94" | 2.16" | 1.60" | 2.56" | 3.31" | 0.92" | 1,500 | 0.45 | $23.89 |
|
|
| S0116-NS13 | 1/2" | 0.51" | 1.04" | 2.33" | 1.85" | 2.95" | 3.70" | 1.08" | 2,500 | 0.74 | $27.42 |
|
|
| S0116-NS16 | 5/8" | 0.63" | 1.25" | 3.00" | 2.10" | 3.41" | 4.52" | 1.25" | 3,000 | 1.10 | $44.59 |
|
|
| S0116-NS20 | 3/4" | 0.74" | 1.50" | 3.34" | 2.55" | 4.15" | 5.30" | 1.46" | 4,000 | 1.86 | $78.49 |
|
|
| S0116-NS22 | 7/8" | 0.86" | 1.72" | 3.85" | 2.90" | 4.69" | 6.00" | 1.71" | 5,000 | 2.85 | $116.00 |
|
|
| S0116-NS25 | 1" | 0.96" | 1.95" | 4.42" | 3.25" | 5.26" | 6.57" | 1.91" | 6,000 | 4.04 | $159.03 |
|
