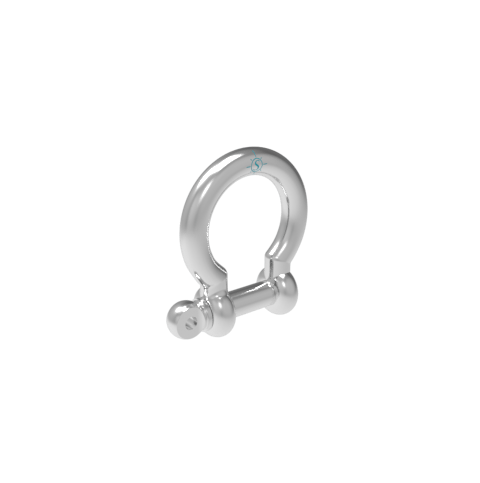

Bow Shackle with Screw Pin
Bow Shackle with Screw Pin
The Stainless Bow Shackle features a screw pin for quick and secure fastening. It comes in sizes from 5/32″ to 1-1/4″ to suit a variety of rigging needs. Made from 316 stainless steel, this shackle offers excellent corrosion resistance and long-term durability. It's ideal for marine and industrial use where strength and reliability matter.
| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0116-0004 | 5/32" | 0.16" | 0.33" | 0.75" | 0.52" | 1.00" | 1.14" | 0.30" | 200 | 0.02 | $2.99 |
|
|
| S0116-0005 | 3/16" | 0.19" | 0.43" | 0.94" | 0.65" | 1.32" | 1.41" | 0.39" | 500 | 0.04 | $3.35 |
|
|
| S0116-0006 | 1/4" | 0.23" | 0.48" | 1.08" | 0.80" | 1.48" | 1.70" | 0.49" | 750 | 0.07 | $3.84 |
|
|
| S0116-0008 | 5/16" | 0.31" | 0.67" | 1.46" | 1.05" | 1.95" | 2.26" | 0.65" | 1,000 | 0.17 | $5.68 |
|
|
| S0116-0010 | 3/8" | 0.39" | 0.79" | 1.77" | 1.25" | 2.32" | 2.76" | 0.80" | 1,200 | 0.31 | $9.73 |
|
|
| S0116-0012 | 15/32" | 0.48" | 0.94" | 2.16" | 1.60" | 2.77" | 3.31" | 0.92" | 1,500 | 0.49 | $20.81 |
|
|
| S0116-0013 | 1/2" | 0.51" | 1.04" | 2.33" | 1.85" | 3.17" | 3.66" | 1.07" | 2,500 | 0.78 | $27.10 |
|
|
| S0116-0016 | 5/8" | 0.63" | 1.25" | 3.00" | 2.10" | 3.67" | 4.55" | 1.25" | 3,000 | 1.20 | $40.45 |
|
|
| S0116-0020 | 3/4" | 0.74" | 1.50" | 3.34" | 2.55" | 4.30" | 5.15" | 1.47" | 4,000 | 1.94 | $65.21 |
|
|
| S0116-0022 | 7/8" | 0.86" | 1.72" | 3.85" | 2.90" | 4.64" | 5.87" | 1.72" | 5,000 | 2.93 | $74.76 |
|
|
| S0116-0025 | 1" | 0.96" | 1.95" | 4.17" | 3.25" | 5.29" | 6.57" | 1.90" | 6,000 | 4.15 | $107.79 |
|
|
| S0116-0032 | 1-1/4" | 1.24" | 2.50" | 5.44" | 4.25" | 7.09" | 8.51" | 2.46" | 9,000 | 9.13 | $245.66 |
|
