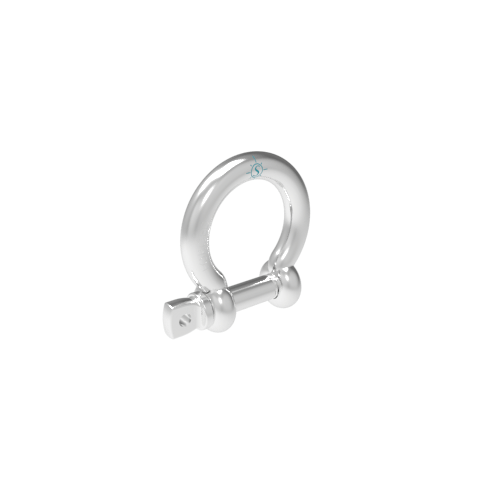

Bow Shackle with Screw Pin - Forged
Bow Shackle with Screw Pin - Forged
The Stainless Forged Bow Shackle includes a screw pin for secure and easy use. It comes in sizes from 3/16″ to 3/4″ to fit a range of rigging needs. Built from 316 stainless steel, it resists corrosion and stands up to tough marine and industrial conditions.
| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0119-0005 | 3/16" | 0.19" | 0.41" | 0.78" | 0.67" | 1.23" | 1.25" | 0.41" | 500 | 0.03 | $4.18 |
|
|
| S0119-0006 | 1/4" | 0.23" | 0.52" | 0.93" | 0.83" | 1.48" | 1.50" | 0.47" | 750 | 0.06 | $5.85 |
|
|
| S0119-0008 | 5/16" | 0.31" | 0.66" | 1.25" | 1.11" | 1.95" | 2.05" | 0.62" | 1,000 | 0.14 | $7.95 |
|
|
| S0119-0010 | 3/8" | 0.39" | 0.83" | 1.57" | 1.28" | 2.43" | 2.52" | 0.78" | 2,000 | 0.26 | $11.75 |
|
|
| S0119-0012 | 15/32" | 0.47" | 0.98" | 1.96" | 1.50" | 2.86" | 3.07" | 0.94" | 3,000 | 0.46 | $21.85 |
|
|
| S0119-0016 | 5/8" | 0.62" | 1.31" | 2.49" | 2.20" | 3.96" | 3.93" | 1.20" | 4,000 | 1.09 | $45.18 |
|
|
| S0119-0020 | 3/4" | 0.77" | 1.62" | 3.10" | 2.55" | 4.72" | 5.13" | 1.57" | 5,500 | 2.09 | $67.80 |
|
