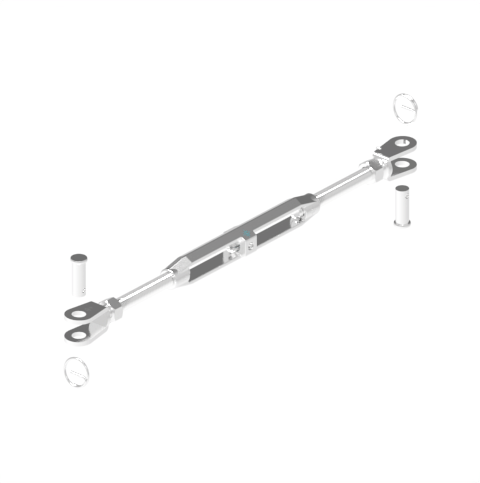

Stainless Cast Jaw and Jaw Turnbuckle with Nuts
Stainless Cast Jaw and Jaw Turnbuckle with Nuts
The Stainless Jaw & Jaw Turnbuckle Cast with Nuts features an open-body design. It comes in sizes from 3/16″ to 3/4″ to cover a wide range of needs. 316 stainless steel delivers strong corrosion resistance and lasting durability. Use it in marine and industrial projects that demand secure and adjustable connections.

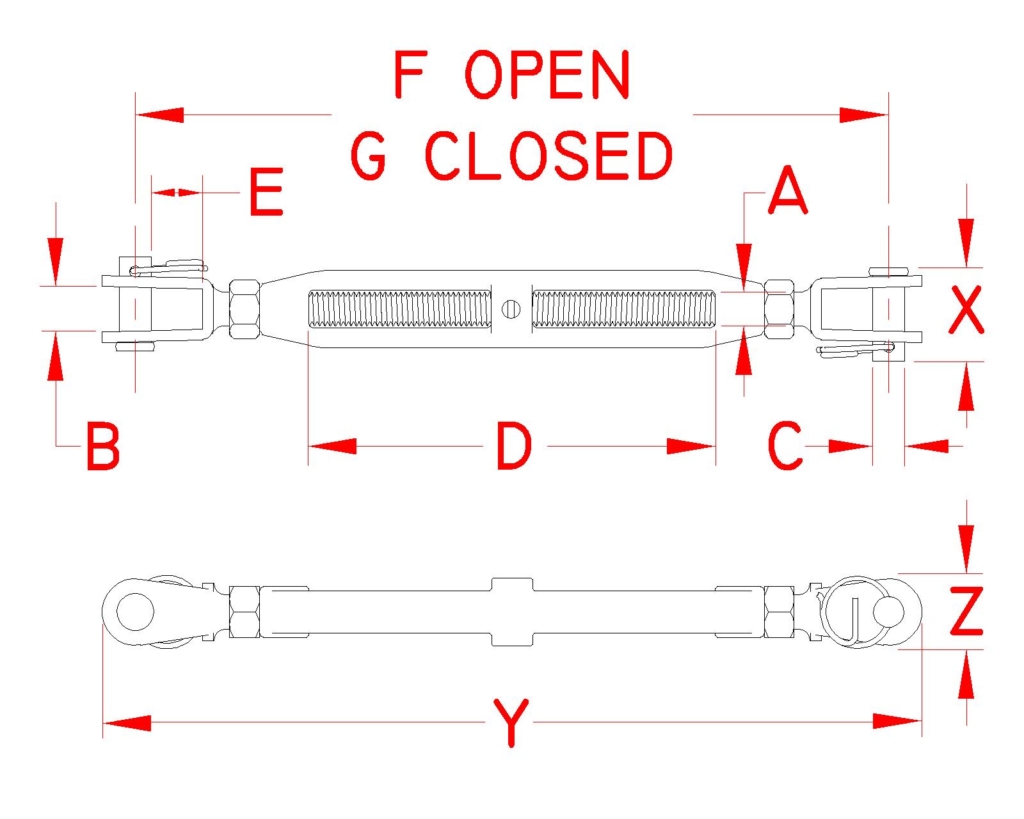

| ITEM | A(size) | B | C | D(adjustment) | E | F | G | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0105-0005 | 3/16" | 0.30" | 0.18" | 2.50" | 0.35" | 7.19" | 4.81" | 0.77" | 5.25" | 0.47" | 300 | 0.12 | $18.93 |
|
|
| S0105-0007 | 1/4" | 0.38" | 0.22" | 3.00" | 0.38" | 8.69" | 5.75" | 0.82" | 6.41" | 0.54" | 440 | 0.23 | $24.52 |
|
|
| S0105-0008 | 5/16" | 0.40" | 0.30" | 4.00" | 0.38" | 11.00" | 7.12" | 0.90" | 7.75" | 0.63" | 800 | 0.38 | $34.10 |
|
|
| S0105-0010 | 3/8" | 0.46" | 0.37" | 6.00" | 0.48" | 16.00" | 10.00" | 1.21" | 10.85" | 0.80" | 1,200 | 0.80 | $44.63 |
|
|
| S0105-0013 | 1/2" | 0.59" | 0.46" | 8.00" | 0.76" | 17.13" | 11.00" | 1.38" | 12.06" | 1.00" | 2,200 | 1.44 | $66.32 |
|
|
| S0105-0016 | 5/8" | 0.69" | 0.63" | 10.00" | 0.86" | 22.50" | 14.50" | 1.60" | 16.50" | 1.40" | 2,800 | 2.94 | $139.25 |
|
|
| S0105-0020 | 3/4" | 0.76" | 0.75" | 10.00" | 1.15" | 28.00" | 18.00" | 1.74" | 20.25" | 1.68" | 3,500 | 5.02 | $217.95 |
|
