Chain Shackle
Chain Shackle

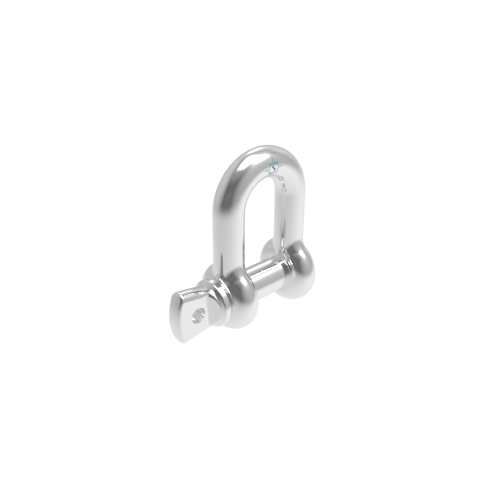

This Stainless Chain Shackle includes an oversize screw pin for secure fastening. It uses 316-NM stainless steel to resist corrosion in marine and industrial environments. Choose from multiple sizes to match your rigging or connection needs.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0115-FS07 | 1/4" | 0.31" | 0.46" | 0.87" | 1.48" | 1.60" | 0.60" | 1,000 | 0.09 | $3.72 |
|
|
| S0115-FS08 | 5/16" | 0.38" | 0.52" | 1.02" | 1.71" | 1.83" | 0.71" | 1,300 | 0.15 | $6.14 |
|
|
| S0115-FS10 | 3/8" | 0.44" | 0.65" | 1.24" | 2.12" | 2.27" | 0.91" | 1,500 | 0.27 | $9.86 |
|
|
| S0115-FS12 | 7/16" | 0.50" | 0.75" | 1.43" | 2.37" | 2.61" | 1.00" | 2,000 | 0.38 | $13.20 |
|
|
| S0115-FS13 | 1/2" | 0.63" | 0.79" | 1.58" | 2.74" | 2.90" | 1.18" | 3,000 | 0.61 | $19.89 |
|
|
| S0115-FS16 | 5/8" | 0.75" | 1.05" | 1.94" | 3.32" | 3.61" | 1.45" | 4,000 | 1.15 | $37.55 |
|
|
| S0115-FS20 | 3/4" | 0.88" | 1.20" | 2.40" | 3.94" | 4.36" | 1.72" | 6,000 | 1.95 | $63.95 |
|
|
| S0115-FS22 | 7/8" | 1.00" | 1.45" | 2.88" | 4.50" | 5.32" | 1.95" | 8,000 | 3.02 | $90.87 |
|
|
| S0115-FS25 | 1" | 1.13" | 1.67" | 3.20" | 5.21" | 5.78" | 2.20" | 10,000 | 4.26 | $130.70 |
|
