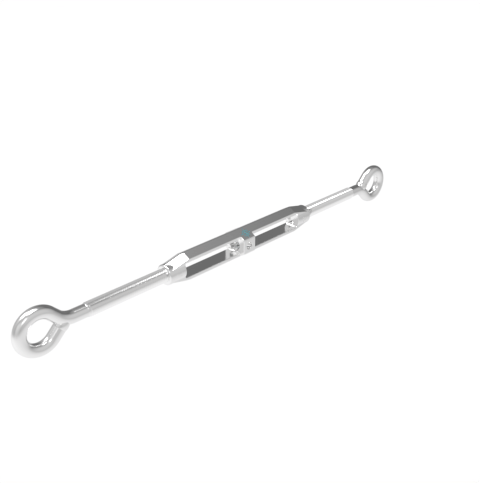

Stainless Cast Eye and Eye Turnbuckle
Stainless Cast Eye and Eye Turnbuckle
The Stainless Cast Eye & Eye Turnbuckle features an open-body design. Choose from sizes ranging from 3/16″ to 3/4″. 316 stainless steel resists corrosion and stands up to tough conditions. Use this turnbuckle in marine or industrial projects that need strength and reliability.

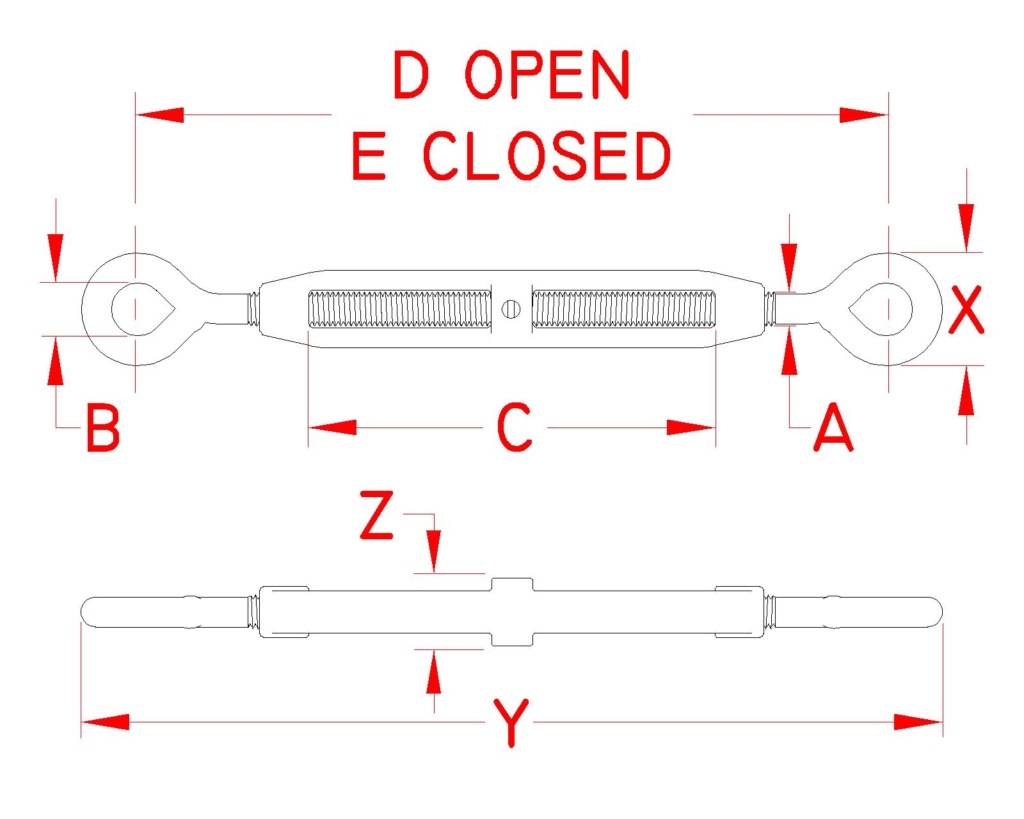

| ITEM | A(size) | B | C(adjustment) | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0154-EE05 | 3/16" | 0.38" | 2.50" | 7.44" | 4.88" | 0.67" | 5.59" | 0.26" | 300 | 0.08 | $11.91 |
|
|
| S0154-EE07 | 1/4" | 0.44" | 3.00" | 8.63" | 5.59" | 0.85" | 6.52" | 0.40" | 440 | 0.18 | $13.85 |
|
|
| S0154-EE08 | 5/16" | 0.50" | 4.00" | 10.63" | 6.75" | 1.04" | 7.81" | 0.62" | 800 | 0.32 | $21.27 |
|
|
| S0154-EE10 | 3/8" | 0.65" | 6.00" | 15.63" | 9.75" | 1.33" | 11.00" | 0.72" | 1,200 | 0.68 | $28.45 |
|
|
| S0154-EE13 | 1/2" | 0.75" | 8.00" | 16.13" | 10.13" | 1.61" | 12.00" | 1.00" | 2,200 | 1.31 | $48.60 |
|
|
| S0154-EE16 | 5/8" | 0.87" | 10.00" | 21.50" | 13.63" | 1.96" | 15.75" | 1.21" | 2,800 | 2.55 | $97.93 |
|
|
| S0154-EE20 | 3/4" | 1.10" | 10.00" | 26.13" | 16.25" | 2.47" | 18.75" | 1.50" | 3,500 | 4.48 | $156.78 |
|
