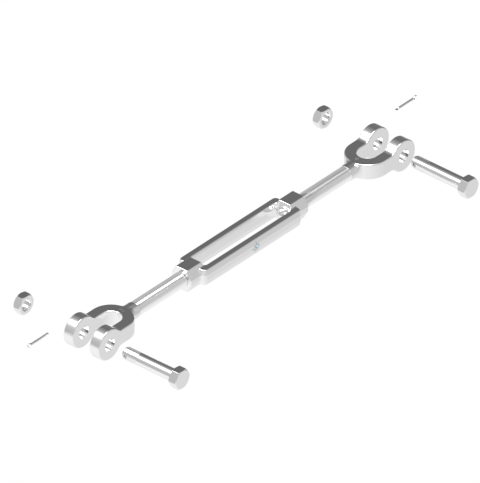

Stainless Forged Jaw and Jaw Turnbuckle
Stainless Forged Jaw and Jaw Turnbuckle
The Stainless Forged Jaw & Jaw Turnbuckle features an open-body design. Sizes range from 1/4″ to 1-1/2″ to fit a wide range of jobs. Each turnbuckle uses 316 stainless steel for strong corrosion resistance. Use it in marine or industrial applications that require strength and adjustability. This turnbuckle meets ASTM F1145-05 (2011), Type 1, Class G for WLL and dimensions.
| ITEM | A(size) | B | C | D(adjustment) | E | F | G | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0108-JJ07 | 1/4" | 0.44" | 0.25" | 4.00" | 0.63" | 11.40" | 7.75" | 1.57" | 8.50" | 0.51" | 500 | 0.40 | $40.34 |
|
|
| S0108-JJ08 | 5/16" | 0.50" | 0.25" | 4.50" | 0.82" | 13.50" | 9.00" | 1.68" | 10.00" | 0.72" | 800 | 0.59 | $56.57 |
|
|
| S0108-JJ10 | 3/8" | 0.56" | 0.31" | 6.00" | 0.86" | 15.90" | 10.63" | 1.92" | 11.50" | 0.92" | 1,200 | 0.94 | $84.55 |
|
|
| S0108-JJ13 | 1/2" | 0.63" | 0.38" | 6.00" | 1.07" | 18.00" | 12.00" | 2.36" | 13.25" | 1.06" | 2,200 | 1.74 | $111.90 |
|
|
| S0108-JJ16 | 5/8" | 0.75" | 0.50" | 6.00" | 1.38" | 21.00" | 13.50" | 2.86" | 15.00" | 1.34" | 3,500 | 3.10 | $165.19 |
|
|
| S0108-JJ20 | 3/4" | 1.00" | 0.63" | 6.00" | 1.56" | 21.50" | 15.00" | 3.38" | 17.00" | 1.60" | 5,200 | 4.93 | $259.77 |
|
|
| S0108-JJ25 | 1" | 1.25" | 0.88" | 6.00" | 2.19" | 24.00" | 18.00" | 4.52" | 20.50" | 2.13" | 8,000 | 11.17 | $398.61 |
|
|
| S0108-JJ25-1 | 1-1/4" | 1.25" | 0.88" | 12.00" | 2.24" | 35.50" | 24.00" | 4.43" | 27.00" | 2.06" | 12,500 | 13.39 | $547.92 |
|
|
| S0108-JJ32-1 | 1-1/4" | 1.88" | 1.13" | 12.00" | 2.90" | 39.50" | 26.63" | 4.50" | 28.00" | 2.13" | 12,500 | 23.00 | $830.59 |
|
|
| S0108-JJ38-1 | 1-1/2" | 2.19" | 1.36" | 12.00" | 2.86" | 41.50" | 28.95" | 5.25" | 32.00" | 3.06" | 17,000 | 34.00 | $1,214.63 |
|
