Forged Turnbuckle Body
Forged Turnbuckle Body
The Stainless Forged Turnbuckle Body features an open-body design with UNC threads. It comes in sizes from 1/4″ to 1-1/4″ to fit a variety of projects. Made from 316 stainless steel, it provides excellent corrosion resistance and long-term durability. Use it in marine and industrial turnbuckle assemblies. This body meets the WLL and dimensions of ASTM F1145-92, Type 1.

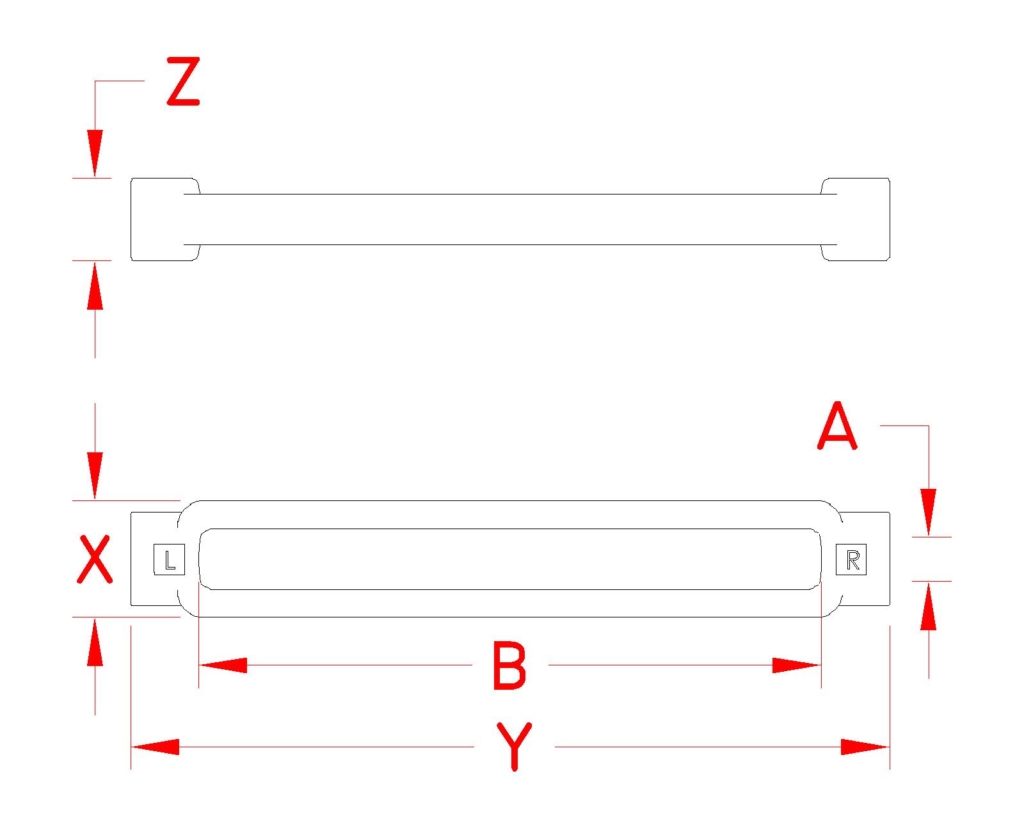

| ITEM | A(size) | B(adjustment) | X | Y | Z | Thread Type | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S0106-BD07 | 1/4" | 4.00" | 0.75" | 4.80" | 0.51" | UNC | 500 | 0.16 | $21.49 |
|
|
| S0106-BD08 | 5/16" | 4.50" | 0.83" | 5.53" | 0.58" | UNC | 800 | 0.24 | $27.58 |
|
|
| S0106-BD10 | 3/8" | 6.00" | 0.94" | 7.18" | 0.67" | UNC | 1,200 | 0.35 | $37.80 |
|
|
| S0106-BD13 | 1/2" | 6.00" | 1.14" | 7.56" | 0.80" | UNC | 2,200 | 0.55 | $57.61 |
|
|
| S0106-BD16 | 5/8" | 6.00" | 1.38" | 7.81" | 0.96" | UNC | 3,500 | 0.90 | $96.74 |
|
|
| S0106-BD20 | 3/4" | 6.00" | 1.68" | 8.23" | 1.17" | UNC | 5,200 | 1.39 | $119.89 |
|
|
| S0106-BD25 | 1" | 6.00" | 2.22" | 9.07" | 1.56" | UNC | 8,000 | 2.82 | $178.36 |
|
|
| S0106-BD25-1 | 1" | 12.00" | 2.20" | 14.50" | 1.59" | UNC | 8,000 | 4.18 | $244.19 |
|
|
| S0106-BD32-1 | 1-1/4" | 12.00" | 2.60" | 15.25" | 1.90" | UNC | 12,500 | 0.55 | $308.62 |
|
|
| S0106-BD38-1 | 1-1/2" | 12.00" | 3.20" | 15.75" | 2.27" | UNC | 17,000 | 9.30 | $472.80 |
|
