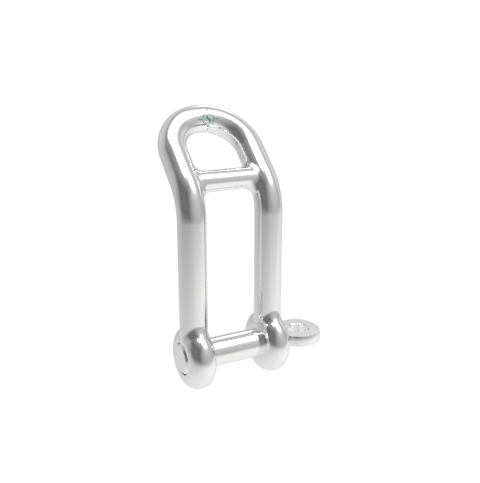

Headboard Shackle with Captive Pin
Headboard Shackle with Captive Pin
The Stainless Headboard Shackle features a captive pin with a self-locking design that keeps the pin from backing out. The pin stays attached to the shackle body and won’t fall out when opened. This makes handling easier and prevents accidental drops. Made from 316 stainless steel, the shackle resists corrosion and holds up in harsh marine environments. Available in sizes from 1/4″ to 1/2″, it’s a smart choice for rigging where security and durability matter.
| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0173-0006 | 1/4" | 0.30" | 0.48" | 1.06" | 0.44" | 1.36" | 2.40" | 0.88" | 750 | 0.10 | $8.94 |
|
|
| S0173-0012 | 1/2" | 0.54" | 0.94" | 2.04" | 0.88" | 2.73" | 4.66" | 1.75" | 1,500 | 0.70 | $40.45 |
|
|
| S0173-0008 | 5/16" | 0.38" | 0.63" | 1.36" | 0.58" | 1.88" | 3.15" | 1.04" | 1,000 | 0.21 | $14.58 |
|
|
| S0173-0010 | 3/8" | 0.47" | 0.78" | 1.75" | 0.74" | 2.25" | 3.92" | 1.51" | 1,200 | 0.42 | $24.21 |
|
