Hex Head Bolt
Hex Head Bolt
This 316 stainless steel Hex Head Bolt resists corrosion and stands up to harsh conditions. It features a large head and a strong cylindrical shaft. Use it in threaded or tapped holes without a nut. Tighten it to apply strong clamping force. Available sizes range from 1/4″ to 5/8″.

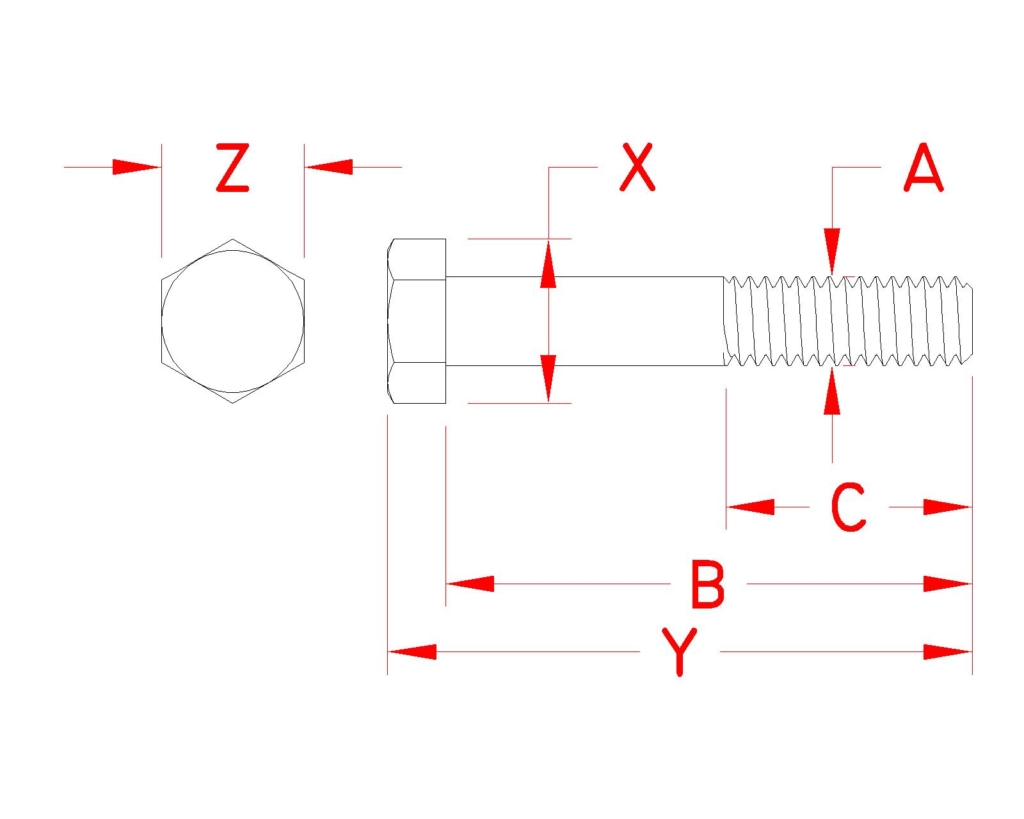

| ITEM | A | B | C | Thread(UNC) | X | Y | Z | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S0336-07100 | 1/4" | 4.00" | 0.75" | 1/4"-20 | 0.49" | 4.15" | 0.43" | 0.05 | $0.99 |
|
|
| S0336-07150 | 5/16" | 5.95" | 1.00" | 5/16"-18 | 0.56" | 6.10" | 0.50" | 0.08 | $0.99 |
|
|
| S0336-08120 | 5/16" | 4.50" | 1.00" | 5/16"-18 | 0.56" | 4.63" | 0.50" | 0.10 | $1.50 |
|
|
| S0336-08150 | 5/16" | 5.95" | 1.00" | 5/16"-18 | 0.56" | 6.15" | 0.50" | 0.13 | $2.62 |
|
|
| S0336-08250 | 5/16" | 10.00" | 4.15" | 5/16"-18 | 0.56" | 10.22" | 0.50" | 0.20 | $29.43 |
|
|
| S0336-10100 | 3/8" | 3.95" | 1.00" | 3/8"-16 | 0.64" | 4.20" | 0.56" | 0.13 | $1.93 |
|
|
| S0336-10150 | 3/8" | 5.95" | 1.00" | 3/8"-16 | 0.64" | 6.15" | 0.56" | 0.19 | $3.56 |
|
|
| S0336-10250 | 3/8" | 9.90" | 1.25" | 3/8"-16 | 0.64" | 10.15" | 0.56" | 0.31 | $20.53 |
|
|
| S0336-13120 | 1/2" | 4.45" | 1.25" | 1/2"-13 | 0.85" | 4.75" | 0.74" | 0.27 | $3.84 |
|
|
| S0336-13150 | 1/2" | 5.95" | 3.00" | 1/2"-13 | 0.85" | 6.25" | 0.74" | 0.33 | $4.22 |
|
|
| S0336-13250 | 1/2" | 9.90" | 3.00" | 1/2"-13 | 0.85" | 10.15" | 0.74" | 0.55 | $10.17 |
|
|
| S0336-16150 | 5/8" | 5.95" | 1.75" | 5/8"-11 | 1.06" | 6.35" | 0.93" | 0.57 | $8.49 |
|
|
| S0336-16300 | 5/8" | 11.95" | 1.75" | 5/8"-11 | 1.06" | 12.35" | 0.93" | 1.09 | $28.26 |
|
