Cast Hook and Eye Turnbuckle
Cast Hook and Eye Turnbuckle

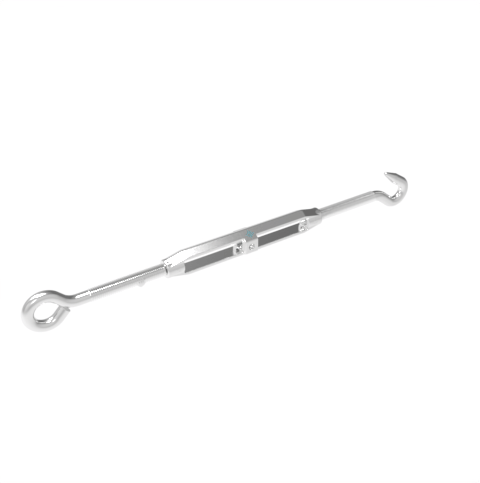

The Stainless Hook and Eye Turnbuckle Cast features an open-body design for easy tension adjustments. Made from 316 stainless steel, it offers superior corrosion resistance and durability, making it ideal for marine and industrial applications. Available in sizes 3/16″ to 3/4″ for versatile use.

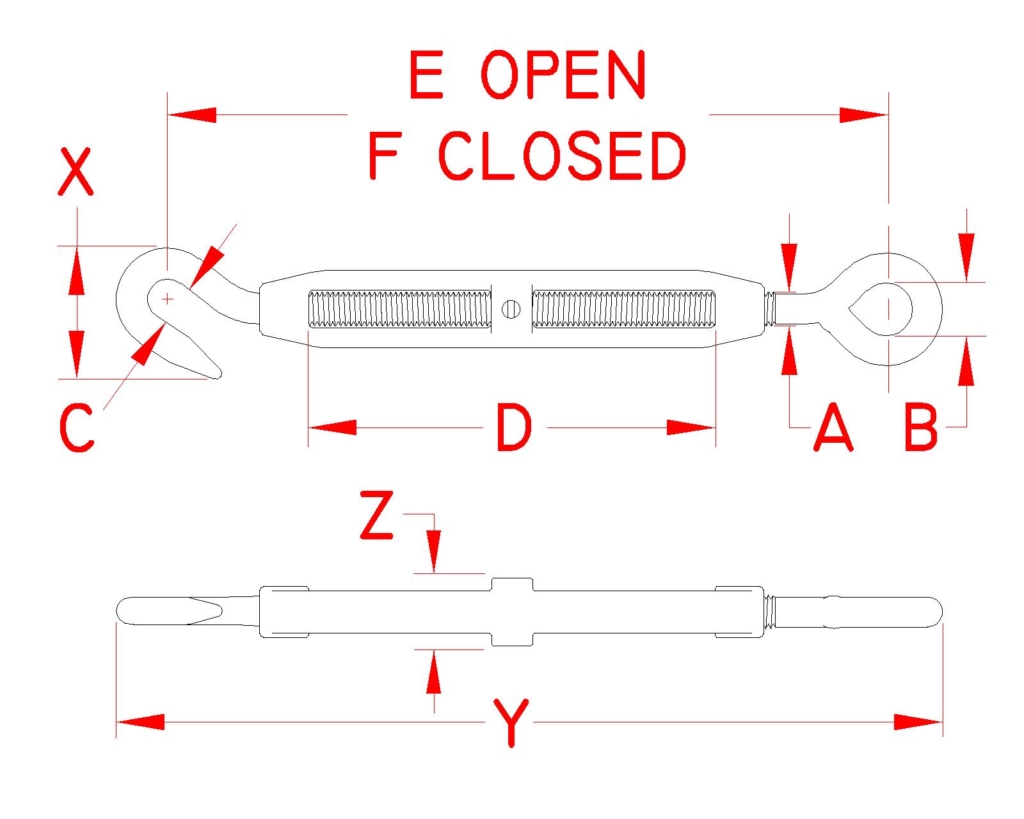

| ITEM | A(size) | B | C | D(adjustment) | E | F | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0154-HE05 | 3/16" | 0.38" | 0.30" | 2.50" | 7.31" | 4.85" | 0.75" | 5.50" | 0.26" | 100 | 0.07 | $12.63 |
|
|
| S0154-HE07 | 1/4" | 0.44" | 0.38" | 3.00" | 8.44" | 5.53" | 0.96" | 6.42" | 0.40" | 200 | 0.18 | $14.37 |
|
|
| S0154-HE08 | 5/16" | 0.50" | 0.44" | 4.00" | 10.63" | 6.75" | 1.18" | 7.80" | 0.62" | 400 | 0.32 | $17.69 |
|
|
| S0154-HE10 | 3/8" | 0.65" | 0.50" | 6.00" | 15.69" | 9.63" | 1.50" | 11.00" | 0.72" | 700 | 0.68 | $29.40 |
|
|
| S0154-HE13 | 1/2" | 0.75" | 0.63" | 8.00" | 16.13" | 10.19" | 1.86" | 12.00" | 1.00" | 1,000 | 1.29 | $49.79 |
|
|
| S0154-HE16 | 5/8" | 0.87" | 0.85" | 10.00" | 21.38" | 13.50" | 2.30" | 15.75" | 1.21" | 1,600 | 2.48 | $85.76 |
|
|
| S0154-HE20 | 3/4" | 1.10" | 0.85" | 10.00" | 25.50" | 15.88" | 2.81" | 18.00" | 1.50" | 2,000 | 4.29 | $132.74 |
|
