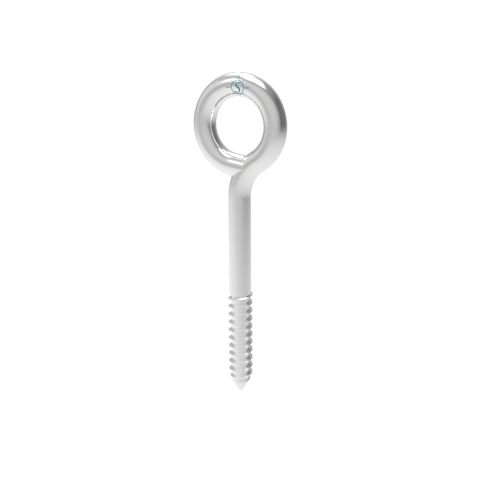

Lag Eye Screw
Lag Eye Screw
The Stainless Lag Eye Screw comes in sizes from 5/32″ to 3/8″ to fit a wide range of projects. Made from 304 stainless steel, it resists corrosion and holds up in tough environments. Use it in marine and industrial applications where strength and reliability are key.

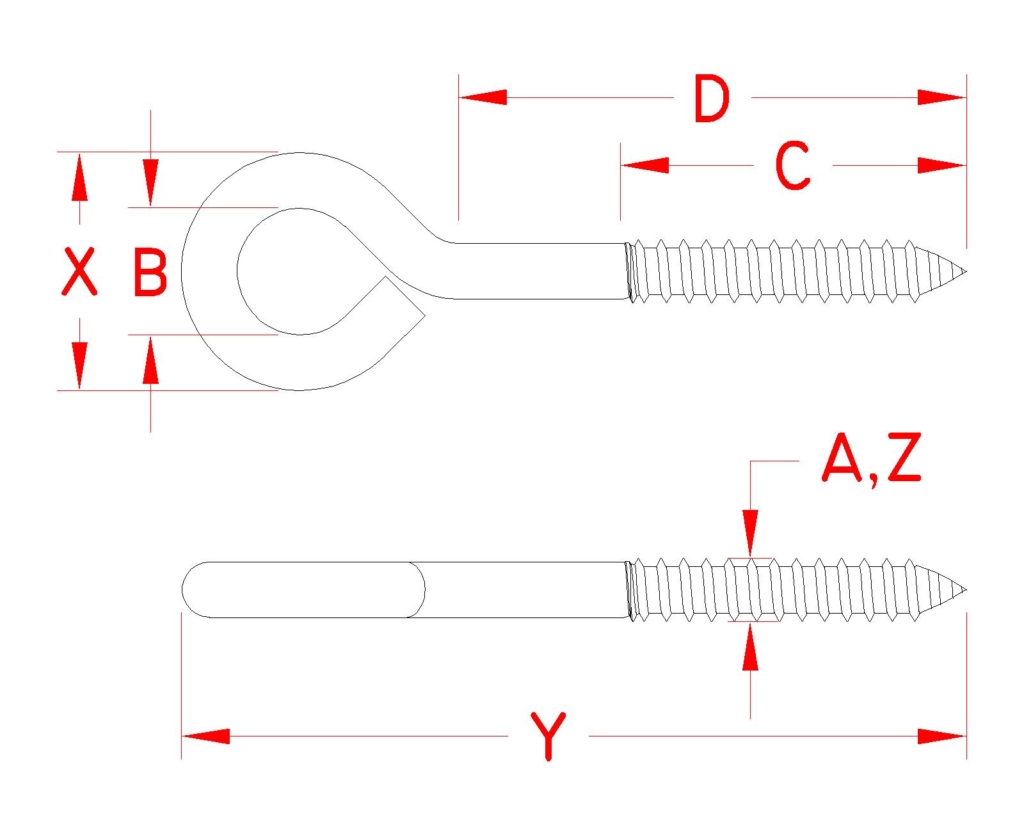

| ITEM | A(size) | B | C | D | X | Y | Z | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S0327-04025 | 5/32" | 0.44" | 0.63" | 0.75" | 0.68" | 1.60" | 0.15" | 0.01 | $1.96 |
|
|
| S0327-07032 | 1/4" | 0.63" | 0.75" | 1.00" | 1.02" | 2.10" | 0.25" | 0.02 | $2.52 |
|
|
| S0327-07065 | 1/4" | 0.58" | 1.87" | 2.50" | 0.96" | 3.53" | 0.25" | 0.04 | $2.77 |
|
|
| S0327-07075 | 1/4" | 0.50" | 1.87" | 3.00" | 0.88" | 4.00" | 0.25" | 0.04 | $2.90 |
|
|
| S0327-07100 | 1/4" | 0.50" | 1.87" | 4.00" | 0.88" | 5.00" | 0.25" | 0.05 | $3.25 |
|
|
| S0327-08032 | 5/16" | 0.63" | 0.75" | 1.25" | 1.12" | 2.50" | 0.31" | 0.05 | $3.53 |
|
|
| S0327-08065 | 5/16" | 0.63" | 1.25" | 2.50" | 1.12" | 3.68" | 0.31" | 0.06 | $3.92 |
|
|
| S0327-08075 | 5/16" | 0.63" | 1.75" | 3.00" | 1.12" | 4.18" | 0.31" | 0.07 | $4.03 |
|
|
| S0327-08100 | 5/16" | 0.63" | 1.75" | 4.00" | 1.12" | 5.18" | 0.31" | 0.12 | $4.20 |
|
|
| S0327-08125 | 5/16" | 0.63" | 1.75" | 5.00" | 1.12" | 6.18" | 0.31" | 0.01 | $5.10 |
|
|
| S0327-10065 | 3/8" | 0.75" | 1.75" | 2.50" | 1.33" | 4.00" | 0.38" | 0.01 | $5.43 |
|
