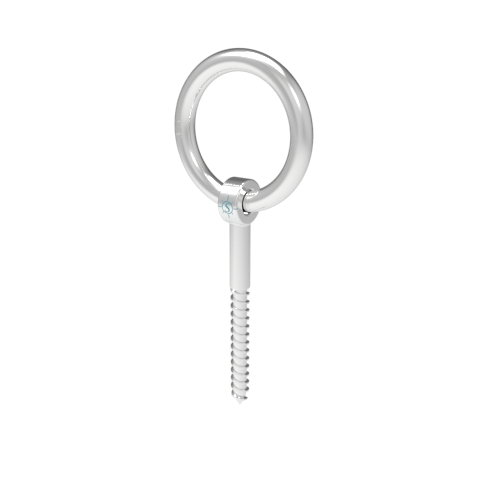

Lag Ring Bolt
Lag Ring Bolt
The Lag Ring Bolt comes in sizes from 1/4″ to 1/2″ to suit a wide range of projects. Made from durable 304 stainless steel, it resists corrosion and delivers dependable performance in both marine and industrial environments.

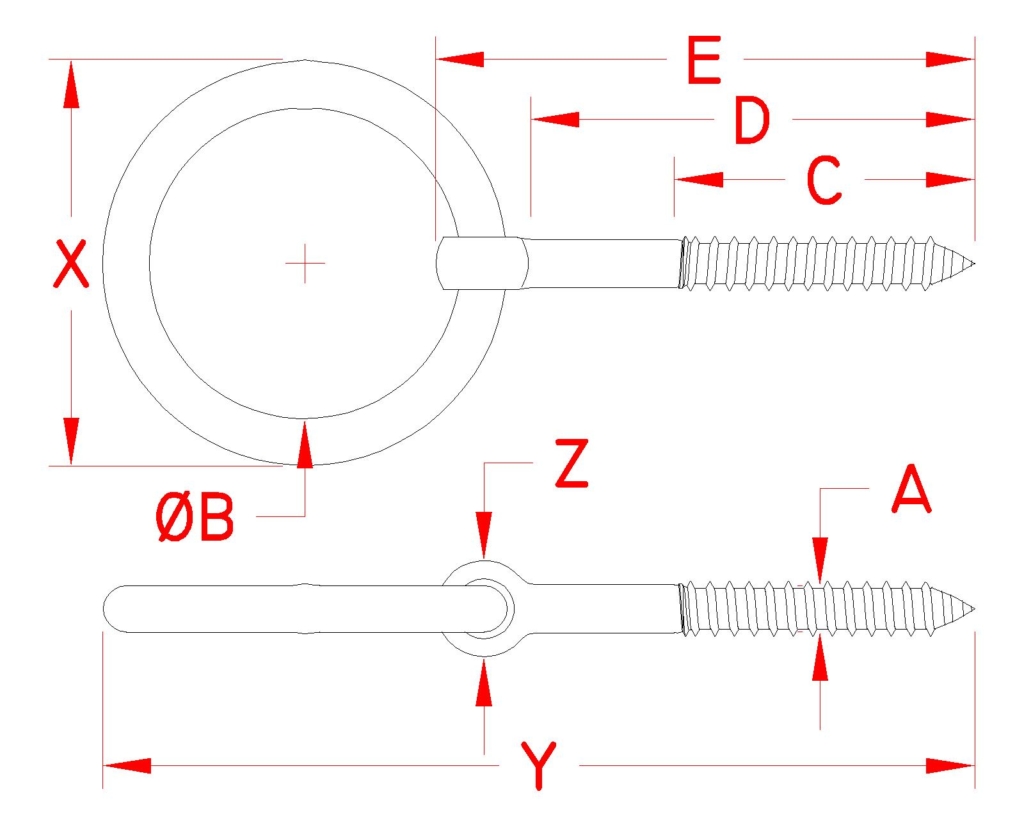

| ITEM | A(size) | B | C | D | E | X | Y | Z | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0329-0007 | 1/4" | 1.20" | 1.50" | 2.25" | 2.75" | 1.66" | 4.00" | 0.50" | 0.08 | $9.07 |
|
|
| S0329-0008 | 5/16" | 2.00" | 1.50" | 2.25" | 3.00" | 2.60" | 5.18" | 0.67" | 0.20 | $12.87 |
|
|
| S0329-0010 | 3/8" | 2.40" | 2.13" | 3.13" | 3.86" | 3.15" | 6.38" | 0.75" | 0.38 | $21.81 |
|
|
| S0329-0013 | 1/2" | 2.94" | 3.25" | 4.75" | 5.65" | 3.88" | 8.88" | 0.91" | 0.71 | $39.45 |
|
