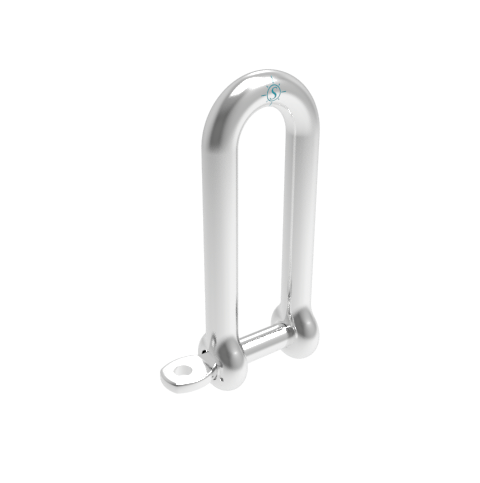

Long D Shackle with Captive Pin
Long D Shackle with Captive Pin
The Stainless Long D Shackle features a captive pin with a self-locking design. The pin stays connected to the body and won’t fall out when opened. This prevents accidental drops and makes handling easier in marine environments. Made from 316 stainless steel, it resists corrosion and performs reliably in harsh conditions. Available in sizes from 5/32″ to 1/2″, this shackle is ideal for marine applications where secure hardware matters.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0138-CP04 | 5/32" | 0.15" | 0.30" | 1.17" | 0.92" | 1.54" | 0.31" | 200 | 0.03 | $5.28 |
|
|
| S0138-CP05 | 3/16" | 0.19" | 0.39" | 1.47" | 1.16" | 1.97" | 0.38" | 500 | 0.05 | $6.01 |
|
|
| S0138-CP06 | 1/4" | 0.23" | 0.46" | 1.77" | 1.32" | 2.40" | 0.48" | 750 | 0.08 | $8.69 |
|
|
| S0138-CP08 | 5/16" | 0.31" | 0.61" | 2.36" | 1.76" | 3.17" | 0.64" | 1,000 | 0.19 | $9.23 |
|
|
| S0138-CP10 | 3/8" | 0.38" | 0.78" | 2.95" | 2.23" | 3.95" | 0.79" | 1,200 | 0.36 | $21.39 |
|
|
| S0138-CP12 | 1/2" | 0.47" | 0.93" | 3.54" | 2.65" | 4.68" | 0.95" | 1,500 | 0.62 | $31.64 |
|
