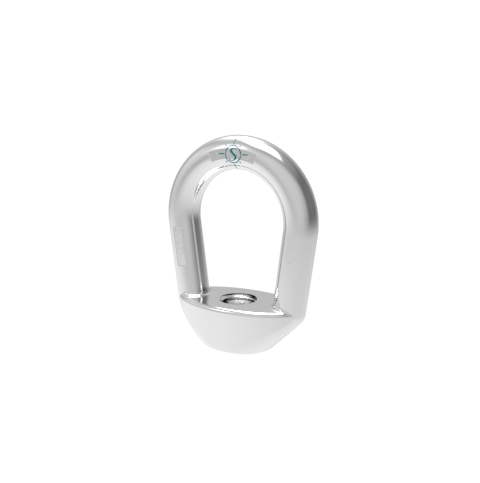

Metric Lifting Eye Nut
Metric Lifting Eye Nut
The Metric Lifting Eye Nut comes in sizes from M6 to M18 to fit a wide range of projects. It features metric threads and is made from 316-NM stainless steel for maximum corrosion resistance and strength. Built for marine, industrial, and heavy-duty use.

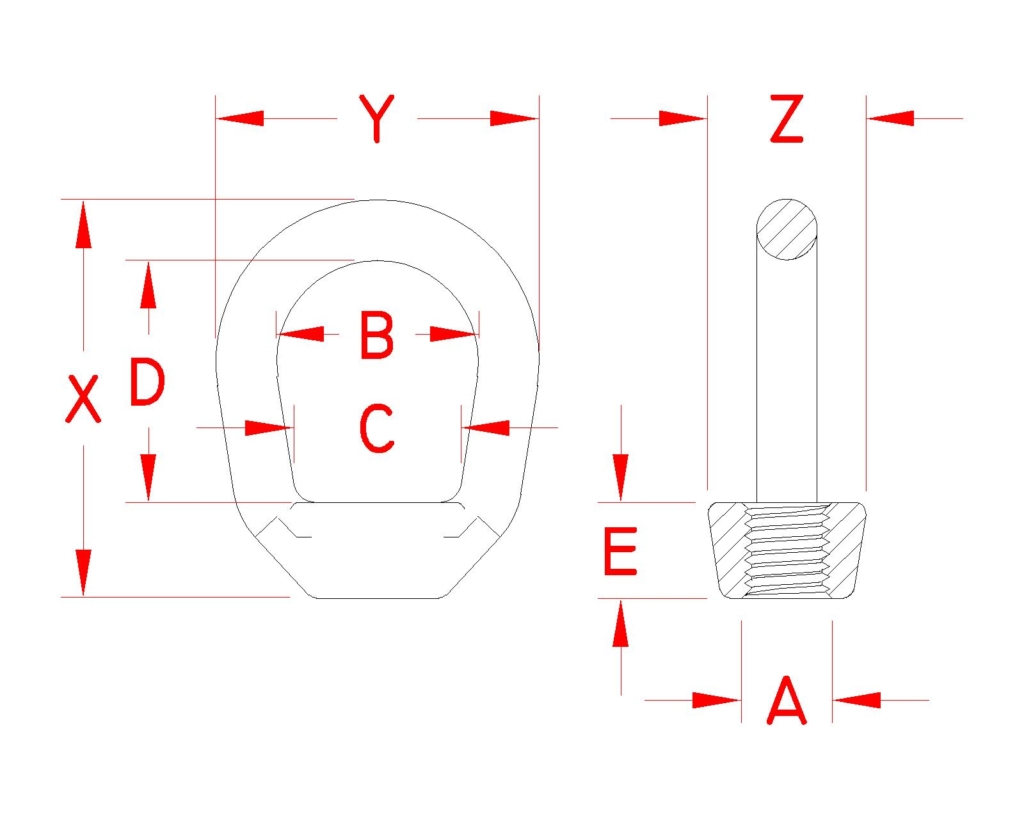

| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0322-M007 | M6 | 0.75" | 0.59" | 1.06" | 0.38" | 1.70" | 1.26" | 0.58" | 460 | 0.08 | $11.26 |
|
|
| S0322-M008 | M8 | 0.75" | 0.59" | 1.06" | 0.38" | 1.70" | 1.26" | 0.58" | 480 | 0.08 | $14.76 |
|
|
| S0322-M010 | M10 | 1.25" | 1.00" | 1.50" | 0.63" | 2.50" | 2.00" | 0.93" | 1,160 | 0.31 | $23.92 |
|
|
| S0322-M013 | M12 | 1.25" | 1.00" | 1.50" | 0.63" | 2.50" | 2.00" | 0.93" | 2,150 | 0.27 | $24.04 |
|
|
| S0322-M016 | M16 | 1.50" | 1.19" | 2.00" | 0.69" | 3.18" | 2.50" | 1.15" | 3,440 | 0.59 | $46.66 |
|
|
| S0322-M020 | M18 | 1.75" | 1.25" | 2.38" | 0.88" | 3.82" | 3.00" | 1.30" | 5,140 | 0.97 | $73.08 |
|
