Pad Eye
Pad Eye

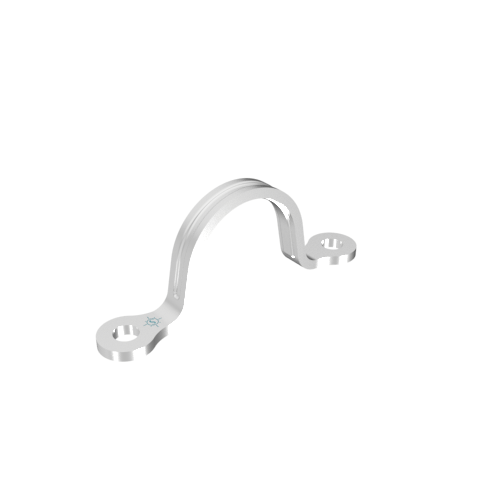

The Stainless Pad Eye serves as a strong anchor point for marine, industrial, architectural, OEM, and government use. Made from grade 304 stainless steel, it offers excellent corrosion resistance and durability. The listed size refers to the maximum inside diameter.
| ITEM | MAX DIAMETER | B | C | D | X | Y | Z | WLL (lb) | WT (lb) | FASTENER | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S3710-0010 | 0.42″ | 0.05″ | 1.20″ | 0.15″ | 0.50″ | 1.52″ | 0.34″ | 220 | 0.01 | — | $0.93 |
|
|
| S3710-0015 | 0.55″ | 0.08″ | 1.40″ | 0.18″ | 0.62″ | 1.84″ | 0.44″ | 230 | 0.02 | — | $1.65 |
|
|
| S3710-0020 | 0.75″ | 0.08″ | 1.75″ | 0.19″ | 0.82″ | 2.22″ | 0.47″ | 350 | 0.03 | — | $2.65 |
|
|
| S3710-0028 | 0.93″ | 0.09″ | 2.50″ | 0.18″ | 1.14″ | 2.94″ | 0.40″ | 250 | 0.03 | — | $2.89 |
|
|
| S3710-0032 | 1.12″ | 0.12″ | 2.72″ | 0.22″ | 1.30″ | 3.31″ | 0.57″ | 400 | 0.05 | #14 | $4.22 |
|
