Plain Eye Bolt
Plain Eye Bolt

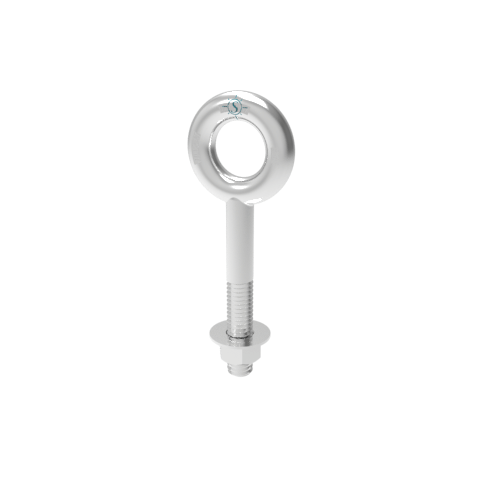

The Stainless Plain Eye Bolt features UNC thread and comes in sizes from 1/4″ to 1″ to fit a wide range of projects. We make it from 316-NM stainless steel to provide maximum corrosion resistance and durability. Each eye bolt includes one nut and one washer. Ideal for marine and industrial applications.

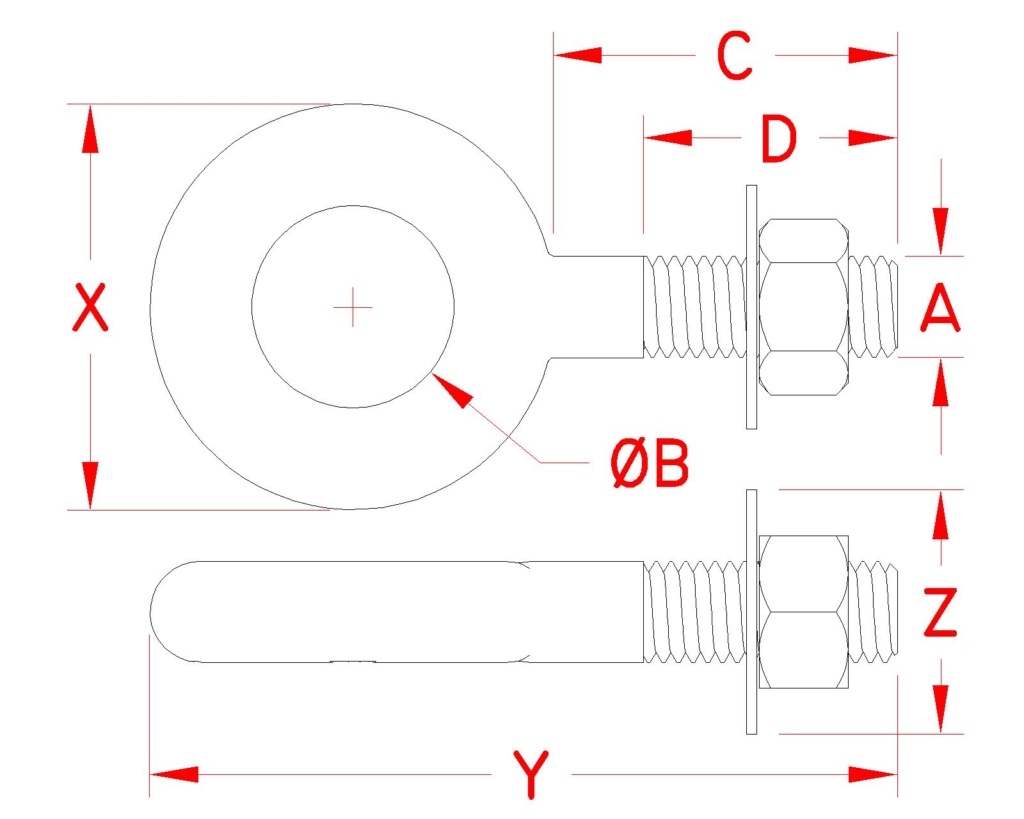

| ITEM | SIZE | B | C | D | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0315-0705 | 1/4″ | 0.50″ | 2.00″ | 1.50″ | 1.03″ | 3.08″ | 0.46″ | 500 | 0.06 | $5.17 |
|
|
| S0315-0710 | 1/4″ | 0.50″ | 4.00″ | 2.50″ | 1.03″ | 5.07″ | 0.46″ | 500 | 0.09 | $7.15 |
|
|
| S0315-0806 | 5/16″ | 0.63″ | 2.25″ | 1.50″ | 1.18″ | 3.50″ | 0.61″ | 800 | 0.10 | $8.20 |
|
|
| S0315-0810 | 5/16″ | 0.63″ | 4.25″ | 2.50″ | 1.18″ | 5.50″ | 0.61″ | 800 | 0.14 | $11.40 |
|
|
| S0315-1002 | 3/8″ | 0.75″ | 0.75″ | 0.75″ | 1.50″ | 2.35″ | 0.76″ | 1,200 | 0.15 | $10.33 |
|
|
| S0315-1006 | 3/8″ | 0.75″ | 2.50″ | 1.50″ | 1.50″ | 4.10″ | 0.76″ | 1,200 | 0.20 | $11.52 |
|
|
| S0315-1012 | 3/8″ | 0.75″ | 4.50″ | 2.50″ | 1.50″ | 6.05″ | 0.76″ | 1,200 | 0.26 | $15.71 |
|
|
| S0315-1304 | 1/2″ | 1.00″ | 1.50″ | 1.25″ | 2.02″ | 3.65″ | 0.93″ | 2,150 | 0.38 | $18.92 |
|
|
| S0315-1308 | 1/2″ | 1.00″ | 3.25″ | 1.50″ | 2.02″ | 5.40″ | 0.93″ | 2,150 | 0.49 | $24.76 |
|
|
| S0315-1315 | 1/2″ | 1.00″ | 6.00″ | 3.00″ | 2.02″ | 8.20″ | 0.93″ | 2,150 | 0.63 | $32.28 |
|
|
| S0315-1603 | 5/8″ | 1.25″ | 1.00″ | 0.75″ | 2.52″ | 3.60″ | 1.17″ | 3,440 | 0.70 | $39.30 |
|
|
| S0315-1605 | 5/8″ | 1.25″ | 2.00″ | 1.75″ | 2.52″ | 4.65″ | 1.17″ | 3,440 | 0.80 | $42.69 |
|
|
| S0315-1610 | 5/8″ | 1.25″ | 4.00″ | 2.00″ | 2.52″ | 6.60″ | 1.17″ | 3,440 | 0.95 | $55.19 |
|
|
| S0315-1615 | 5/8″ | 1.25″ | 6.00″ | 3.00″ | 2.52″ | 8.60″ | 1.17″ | 3,440 | 1.12 | $64.50 |
|
|
| S0315-2003 | 3/4″ | 1.50″ | 1.00″ | 0.88″ | 2.90″ | 4.00″ | 1.45″ | 5,140 | 1.06 | $62.09 |
|
|
| S0315-2005 | 3/4″ | 1.50″ | 2.00″ | 1.75″ | 2.90″ | 4.98″ | 1.44″ | 5,140 | 1.13 | $69.80 |
|
|
| S0315-2012 | 3/4″ | 1.50″ | 4.50″ | 2.00″ | 2.90″ | 7.50″ | 1.44″ | 5,140 | 1.46 | $90.06 |
|
|
| S0315-2015 | 3/4″ | 1.50″ | 6.00″ | 3.00″ | 2.90″ | 8.90″ | 1.44″ | 5,140 | 1.60 | $108.24 |
|
|
| S0315-2213 | 7/8″ | 1.75″ | 5.00″ | 2.50″ | 3.40″ | 8.55″ | 1.50″ | 7,130 | 2.15 | $158.75 |
|
|
| S0315-2504 | 1″ | 2.00″ | 1.44″ | 1.38″ | 4.00″ | 5.75″ | 1.72″ | 9,370 | 2.76 | $114.89 |
|
|
| S0315-2506 | 1″ | 2.00″ | 2.50″ | 2.25″ | 4.00″ | 7.00″ | 1.72″ | 9,370 | 3.14 | $131.03 |
|
|
| S0315-2515 | 1″ | 2.00″ | 6.00″ | 3.00″ | 4.00″ | 10.25″ | 1.72″ | 9,370 | 3.96 | $224.84 |
|
