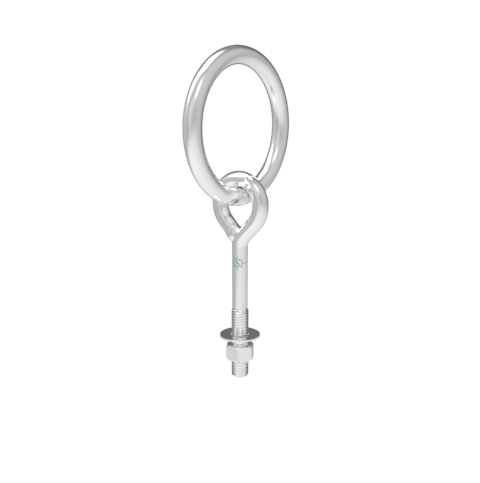

Plain Ring Bolt
Plain Ring Bolt
The Stainless Plain Ring Bolt features UNC threads and includes one nut and one washer. It comes in sizes from 1/4″ to 1/2″. Made from 316 stainless steel, it resists corrosion and delivers long-lasting strength. Ideal for marine, industrial, and general-purpose use.

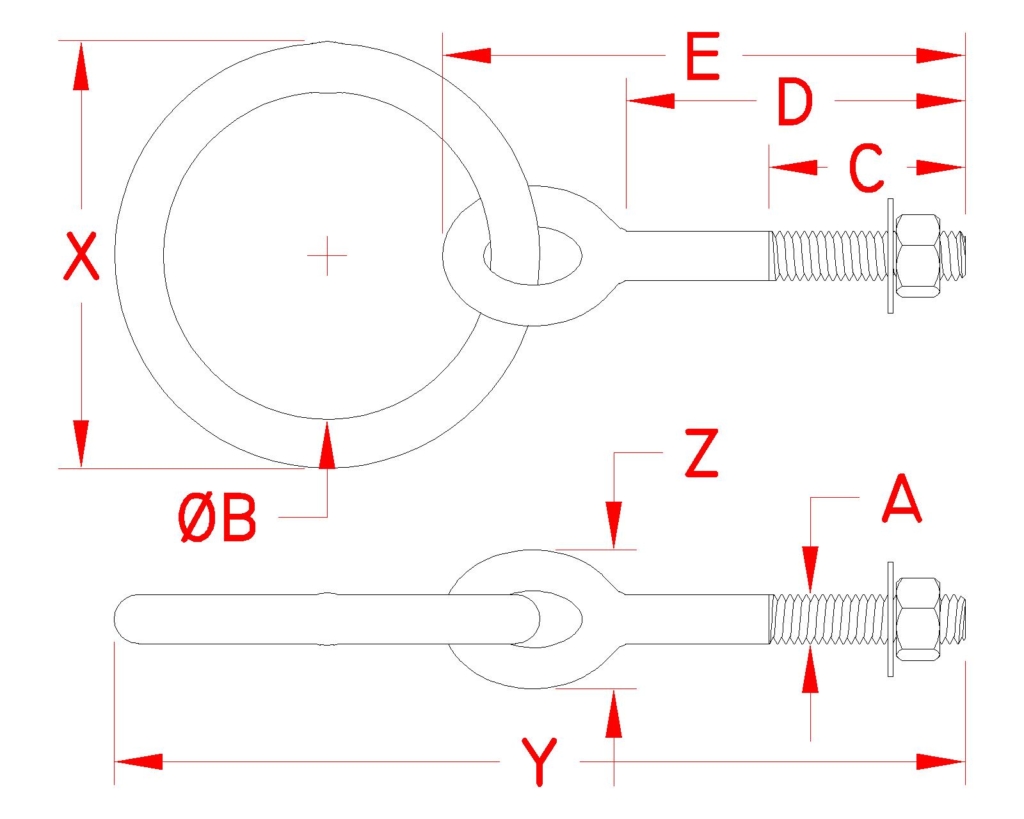

| ITEM | A (size) | B | C | D | E | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0331-0750 | 1/4″ | 1.75″ | 1.50″ | 2.00″ | 2.94″ | 2.25″ | 4.75″ | 0.46″ | 250 | 0.11 | $11.61 |
|
|
| S0331-0855 | 5/16″ | 2.00″ | 1.50″ | 2.25″ | 3.50″ | 2.63″ | 5.58″ | 0.63″ | 400 | 0.25 | $20.78 |
|
|
| S0331-1012 | 3/8″ | 2.50″ | 2.50″ | 4.25″ | 5.75″ | 3.25″ | 8.15″ | 0.75″ | 600 | 0.48 | $35.10 |
|
|
| S0331-1065 | 3/8″ | 2.50″ | 1.50″ | 2.50″ | 4.25″ | 3.25″ | 6.75″ | 0.75″ | 600 | 0.46 | $32.25 |
|
|
| S0331-1315 | 1/2″ | 3.00″ | 3.00″ | 6.00″ | 8.00″ | 3.90″ | 10.80″ | 0.93″ | 1,100 | 1.10 | $67.12 |
|
|
| S0331-1380 | 1/2″ | 3.00″ | 1.50″ | 3.25″ | 5.25″ | 3.90″ | 8.00″ | 0.93″ | 1,100 | 0.82 | $61.37 |
|
