PULLPRO® Bolt Head Block LoLOAD - Wire
PULLPRO® Bolt Head Block LoLOAD - Wire

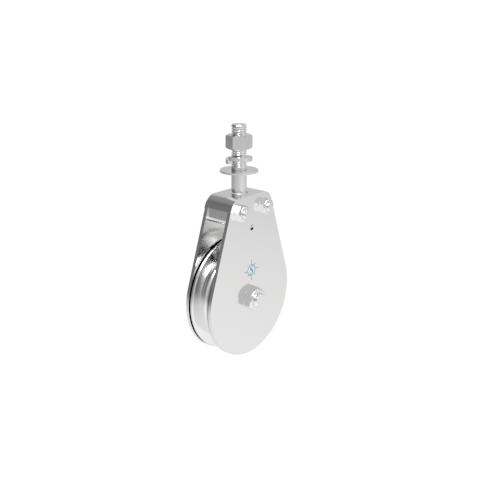

The PULLPRO® Bolt Head Block LoLOAD – Wire uses premium 316 stainless steel for exceptional strength and corrosion resistance. Its forged bolt head delivers maximum fatigue resistance. The cast stainless steel head supports multiple rigging configurations. Polished stainless cheeks add durability and withstand harsh conditions. A stainless locknut simplifies sheave removal, making it easy to install premade wire rope or perform maintenance. The LoLOAD design uses a smaller diameter sheave for economical deflection turns under 90°, offering a lower D/d ratio. The sheave also features 316 stainless steel construction. This block meets B30.26 specifications.
| ITEM | Sheave Type | A(wire size) | B(sheave dia.) | C | D(thread) | E | X(height) | Y(length) | Z(width) | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0431-05050-BH1 | Bronze Bushing | 3/16" | 2.00" | 1.50" | 5/16"-18 | 1.51" | 2.04" | 4.75" | 1.15" | 1,000 | 0.65 | $41.69 |
|
|
| S0431-07063-BH1 | Bronze Bushing | 1/4" | 2.50" | 1.90" | 3/8"-16 | 1.35" | 2.56" | 5.27" | 1.48" | 1,500 | 1.28 | $71.94 |
|
|
| S0431-08078-BH1 | Bronze Bushing | 5/16" | 3.13" | 2.33" | 1/2"-13 | 2.23" | 3.20" | 7.10" | 1.80" | 2,000 | 2.49 | $166.47 |
|
|
| S0431-10100-BH1 | Bronze Bushing | 3/8" | 2.00" | 1.50" | 1/2"-13 | 2.23" | 4.06" | 7.86" | 1.80" | 3,000 | 3.10 | $141.30 |
|
|
| S0432-05050-BH1 | Stainless Bearing | 3/16" | 2.00" | 1.50" | 5/16"-18 | 1.51" | 2.04" | 4.76" | 1.15" | 1,000 | 0.68 | $61.82 |
|
|
| S0432-07063-BH1 | Stainless Bearing | 1/4" | 2.50" | 1.90" | 3/8"-16 | 1.35" | 2.56" | 5.27" | 1.48" | 1,500 | 1.25 | $87.84 |
|
|
| S0432-08078-BH1 | Stainless Bearing | 5/16" | 3.13" | 2.33" | 1/2"-13 | 2.23" | 3.20" | 7.10" | 1.80" | 2,000 | 2.42 | $144.86 |
|
|
| S0432-10100-BH1 | Stainless Bearing | 3/8" | 4.00" | 3.04" | 1/2"-13 | 2.23" | 4.06" | 7.86" | 1.80" | 3,000 | 3.12 | $178.48 |
|
