PULLPRO® SA Bow Shackle Block HiLOAD – Wire
PULLPRO® SA Bow Shackle Block HiLOAD – Wire

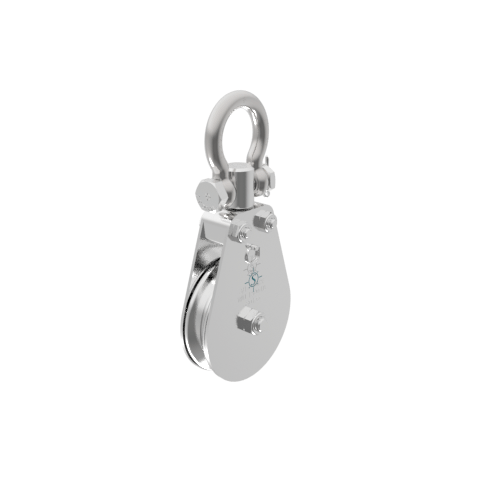

Stainless PULLPRO SA Bow Shackle Block HiLOAD – Wire features a forged 316 stainless steel SA Bow Shackle for superior strength and fatigue resistance. Its cast stainless steel head supports multiple rigging configurations. Polished 316 stainless cheeks offer long-lasting durability and include stamped markings for wire size, WLL. A stainless locknut allows for easy sheave removal, making installation and maintenance fast and efficient. The HiLOAD design accommodates larger diameter sheaves and 180° rope turns, supporting a high D/d ratio. This block meets B30.26 specifications and performs reliably in harsh marine or industrial environments.
| ITEM | Sheave Type | A (wire size) | B (sheave dia.) | C | D | E | X (height) | Y (length) | Z (width) | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0433-03050-BA1 | Bronze Bushing | 1/8″ | 2.00″ | 1.64″ | 1/4″ (6mm) | 0.83″ | 2.04″ | 4.40″ | 0.99″ | 500 | 0.49 | $44.49 |
|
|
| S0433-05075-BA1 | Bronze Bushing | 3/16″ | 3.00″ | 2.42″ | 3/8″ (10mm) | 1.28″ | 3.06″ | 6.94″ | 1.48″ | 1,500 | 1.79 | $90.36 |
|
|
| S0433-07100-BA1 | Bronze Bushing | 1/4″ | 4.00″ | 3.28″ | 3/8″ (10mm) | 1.28″ | 4.06″ | 8.24″ | 1.80″ | 2,000 | 3.25 | $123.97 |
|
|
| S0433-08125-BA1 | Bronze Bushing | 5/16″ | 5.00″ | 4.20″ | 15/32″ (12mm) | 1.50″ | 5.10″ | 10.22″ | 1.80″ | 3,000 | 4.53 | $197.28 |
|
|
| S0433-10150-BA1 | Bronze Bushing | 3/8″ | 6.00″ | 5.00″ | 5/8″ (16mm) | 2.20″ | 6.10″ | 12.29″ | 2.20″ | 4,000 | 8.48 | $315.79 |
|
|
| S0434-03050-BA1 | Stainless Bearing | 1/8″ | 2.00″ | 1.64″ | 1/4″ (6mm) | 0.83″ | 2.04″ | 4.40″ | 0.99″ | 500 | 0.51 | $60.11 |
|
|
| S0434-05075-BA1 | Stainless Bearing | 3/16″ | 3.00″ | 2.42″ | 3/8″ (10mm) | 1.28″ | 3.06″ | 6.94″ | 1.48″ | 1,500 | 1.79 | $106.31 |
|
|
| S0434-07100-BA1 | Stainless Bearing | 1/4″ | 4.00″ | 3.28″ | 3/8″ (10mm) | 1.28″ | 4.06″ | 8.24″ | 1.80″ | 2,000 | 3.20 | $161.10 |
|
|
| S0434-08125-BA1 | Stainless Bearing | 5/16″ | 5.00″ | 4.20″ | 15/32″ (12mm) | 1.50″ | 5.10″ | 10.22″ | 1.80″ | 3,000 | 4.47 | $260.46 |
|
|
| S0434-10150-BA1 | Stainless Bearing | 3/8″ | 6.00″ | 5.00″ | 5/8″ (16mm) | 2.20″ | 6.10″ | 12.29″ | 2.20″ | 4,000 | 8.51 | $362.19 |
|
