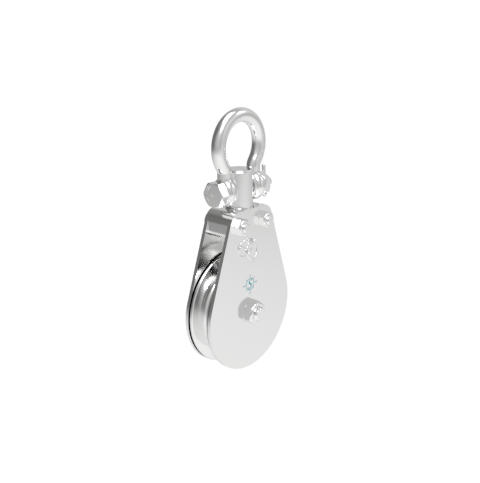

PULLPRO® SA Bow Shackle Block LoLOAD – Wire
PULLPRO® SA Bow Shackle Block LoLOAD – Wire
The PULLPRO® SA Bow Shackle Block LoLOAD – Wire features a forged 316 stainless SA Bow Shackle for strength and fatigue resistance. Its cast stainless head supports flexible rigging setups. Polished cheeks offer durability and show wire rope size and working load limit. A stainless locknut allows quick sheave removal for premade wire installation or service. The LoLOAD design supports small deflection turns under 90° with a lower D/d ratio. This block meets B30.26 specifications.
| ITEM | Sheave Type | A (wire size) | B (sheave dia.) | C | D | E | X (height) | Y (length) | Z (width) | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0431-05050-BA1 | Bronze Bushing | 3/16″ | 2.00″ | 1.50″ | 5/16″ (8mm) | 1.11″ | 2.04″ | 5.34″ | 1.15″ | 1,000 | 0.78 | $51.80 |
|
|
| S0431-07063-BA1 | Bronze Bushing | 1/4″ | 2.50″ | 1.90″ | 3/8″ (10mm) | 1.28″ | 2.56″ | 6.51″ | 1.48″ | 1,500 | 1.62 | $87.79 |
|
|
| S0431-08078-BA1 | Bronze Bushing | 5/16″ | 3.13″ | 2.33″ | 3/8″ (10mm) | 1.28″ | 3.20″ | 8.11″ | 1.80″ | 2,000 | 2.98 | $121.83 |
|
|
| S0431-10100-BA1 | Bronze Bushing | 3/8″ | 4.00″ | 3.04″ | 15/32″ (12mm) | 1.50″ | 4.06″ | 8.80″ | 1.80″ | 3,000 | 3.68 | $164.90 |
|
|
| S0432-05050-BA1 | Stainless Bearing | 3/16″ | 2.00″ | 1.50″ | 5/16″ (8mm) | 1.11″ | 2.04″ | 5.31″ | 1.15″ | 1,000 | 0.81 | $71.98 |
|
|
| S0432-07063-BA1 | Stainless Bearing | 1/4″ | 2.50″ | 1.90″ | 3/8″ (10mm) | 1.28″ | 2.56″ | 6.51″ | 1.48″ | 1,500 | 1.59 | $103.65 |
|
|
| S0432-08078-BA1 | Stainless Bearing | 5/16″ | 3.13″ | 2.33″ | 3/8″ (10mm) | 1.28″ | 3.20″ | 8.11″ | 1.80″ | 2,000 | 2.91 | $158.96 |
|
|
| S0432-10100-BA1 | Stainless Bearing | 3/8″ | 4.00″ | 3.04″ | 15/32″ (12mm) | 1.50″ | 4.06″ | 8.80″ | 1.80″ | 3,000 | 3.70 | $202.03 |
|
