PULLPRO® D Shackle Block – Rope
PULLPRO® D Shackle Block – Rope

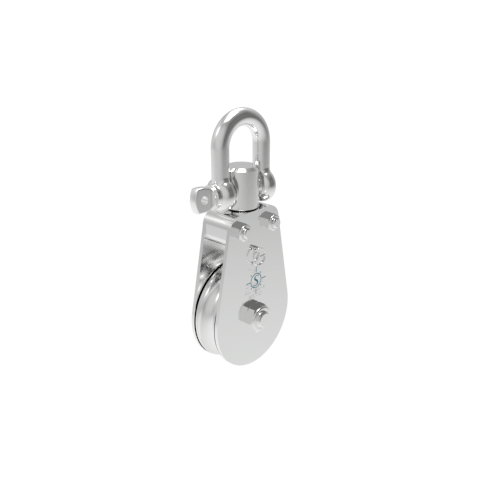

The Stainless PULLPRO® SA Bow Shackle Block – Rope uses a forged 316 stainless SA Bow Shackle for high strength and durability. Its cast 316 stainless head supports flexible rigging setups. Polished stainless cheeks improve longevity and show rope size and working load limit. A stainless locknut allows quick sheave removal for premade rope installation and service. Choose a Bronze Bushing (S0429) or Stainless Bearing (S0430) sheave. This block meets B30.26 specifications.
| ITEM | Sheave Type | A (rope size) | B (sheave dia.) | C | D | E | X (height) | Y (length) | Z (width) | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0429-12050-DS1 | Bronze Bushing | 7/16″ | 2.00″ | 1.65″ | 5/16″ (8mm) | 0.66″ | 2.04″ | 5.17″ | 1.15″ | 1,000 | 0.78 | $50.24 |
|
|
| S0429-13063-DS1 | Bronze Bushing | 1/2″ | 2.50″ | 2.05″ | 3/8″ (10mm) | 0.83″ | 2.56″ | 6.11″ | 1.48″ | 1,500 | 1.54 | $83.85 |
|
|
| S0429-16079-DS1 | Bronze Bushing | 5/8″ | 3.13″ | 2.53″ | 15/32″ (12mm) | 0.98″ | 3.20″ | 7.61″ | 1.80″ | 3,000 | 2.84 | $121.74 |
|
|
| S0429-20095-DS1 | Bronze Bushing | 3/4″ | 3.75″ | 3.02″ | 5/8″ (16mm) | 1.31″ | 3.80″ | 9.28″ | 2.20″ | 4,000 | 5.16 | $185.41 |
|
|
| S0429-25125-DS1 | Bronze Bushing | 1″ | 5.00″ | 4.00″ | 3/4″ (20mm) | 1.62″ | 5.10″ | 12.06″ | 2.78″ | 5,500 | 11.31 | $440.19 |
|
|
| S0430-12050-DS1 | Stainless Bearing | 7/16″ | 2.00″ | 1.65″ | 5/16″ (8mm) | 0.66″ | 2.04″ | 5.17″ | 1.15″ | 1,000 | 0.82 | $71.69 |
|
|
| S0430-13063-DS1 | Stainless Bearing | 1/2″ | 2.50″ | 2.05″ | 3/8″ (10mm) | 0.83″ | 2.56″ | 6.11″ | 1.48″ | 1,500 | 1.49 | $99.14 |
|
|
| S0430-16079-DS1 | Stainless Bearing | 5/8″ | 3.13″ | 2.53″ | 15/32″ (12mm) | 0.98″ | 3.20″ | 7.61″ | 1.80″ | 3,000 | 2.78 | $158.91 |
|
|
| S0430-20095-DS1 | Stainless Bearing | 3/4″ | 3.75″ | 3.02″ | 5/8″ (16mm) | 1.31″ | 3.80″ | 9.28″ | 2.20″ | 4,000 | 5.06 | $231.80 |
|
|
| S0430-25125-DS1 | Stainless Bearing | 1″ | 5.00″ | 4.03″ | 3/4″ (20mm) | 1.62″ | 5.10″ | 12.06″ | 2.78″ | 5,500 | 11.08 | $484.15 |
|
