PULLPRO® SA Bow Shackle Block – Rope
PULLPRO® SA Bow Shackle Block – Rope

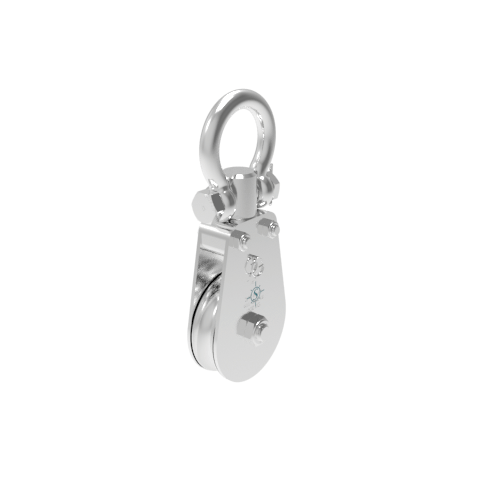

The PULLPRO® SA Bow Shackle Block – Rope uses a forged 316 stainless SA Bow Shackle for strength and fatigue resistance. Its cast stainless head supports flexible rigging setups. Polished cheeks improve durability and clearly mark rope size and working load limit. A stainless locknut makes sheave removal easy for premade rope installation or maintenance. The 316 stainless sheave delivers long-lasting corrosion resistance. This block meets B30.26 specifications.
| ITEM | Sheave Type | A (rope size) | B (sheave dia.) | C | D | E | X (height) | Y (length) | Z (width) | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0429-12050-BA1 | Bronze Bushing | 7/16″ | 2.00″ | 1.65″ | 5/16″ (8mm) | 1.11″ | 2.04″ | 5.34″ | 1.15″ | 1,000 | 0.82 | $52.33 |
|
|
| S0429-13063-BA1 | Bronze Bushing | 1/2″ | 2.50″ | 2.05″ | 3/8″ (10mm) | 1.28″ | 2.56″ | 6.51″ | 1.48″ | 1,500 | 1.61 | $87.55 |
|
|
| S0429-16079-BA1 | Bronze Bushing | 5/8″ | 3.13″ | 2.53″ | 15/32″ (12mm) | 1.50″ | 3.20″ | 8.11″ | 1.80″ | 3,000 | 2.88 | $127.58 |
|
|
| S0429-20095-BA1 | Bronze Bushing | 3/4″ | 3.75″ | 3.02″ | 5/8″ (16mm) | 2.20″ | 3.80″ | 9.89″ | 2.20″ | 4,000 | 5.27 | $200.42 |
|
|
| S0429-25125-BA1 | Bronze Bushing | 1″ | 5.00″ | 4.00″ | 3/4″ (20mm) | 2.55″ | 5.10″ | 12.83″ | 2.78″ | 5,500 | 11.48 | $467.45 |
|
|
| S0430-12050-BA1 | Stainless Bearing | 7/16″ | 2.00″ | 1.65″ | 5/16″ (8mm) | 1.11″ | 2.04″ | 5.34″ | 1.15″ | 1,000 | 0.83 | $73.74 |
|
|
| S0430-13063-BA1 | Stainless Bearing | 1/2″ | 2.50″ | 2.05″ | 3/8″ (10mm) | 1.28″ | 2.56″ | 6.51″ | 1.48″ | 1,500 | 1.56 | $102.84 |
|
|
| S0430-16079-BA1 | Stainless Bearing | 5/8″ | 3.13″ | 2.53″ | 15/32″ (12mm) | 1.50″ | 3.20″ | 8.11″ | 1.80″ | 3,000 | 2.82 | $164.71 |
|
|
| S0430-20095-BA1 | Stainless Bearing | 3/4″ | 3.75″ | 3.02″ | 5/8″ (16mm) | 2.20″ | 3.80″ | 9.89″ | 2.20″ | 4,000 | 5.17 | $246.85 |
|
|
| S0430-25125-BA1 | Stainless Bearing | 1″ | 5.00″ | 4.03″ | 3/4″ (20mm) | 2.55″ | 5.10″ | 12.83″ | 2.78″ | 5,500 | 11.25 | $511.37 |
|
