PULLPRO® Swivel Eye Block HiLOAD – Wire
PULLPRO® Swivel Eye Block HiLOAD – Wire

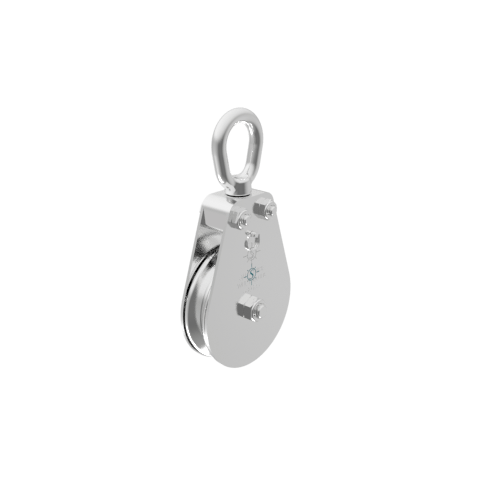

The PULLPRO® Swivel Eye Block HiLOAD – Wire includes a forged 316 stainless swivel eye for high strength and fatigue resistance. Its cast stainless head supports flexible rigging. Polished cheeks increase durability and show wire rope size and load limit. A stainless locknut allows quick sheave removal for premade wire installation or service. The HiLOAD design handles larger sheaves and 180° rope turns with a high D/d ratio. This block meets B30.26 specifications.
| ITEM | Sheave Type | A (wire size) | B (sheave dia.) | C | D | E | F | X (height) | Y (length) | Z (width) | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0433-03050-EY1 | Bronze Bushing | 1/8″ | 2.00″ | 1.64″ | 0.25″ | 0.57″ | 0.77″ | 2.04″ | 4.10″ | 0.99″ | 500 | 0.44 | $44.54 |
|
|
| S0433-05075-EY1 | Bronze Bushing | 3/16″ | 3.00″ | 2.42″ | 0.33″ | 0.93″ | 1.25″ | 3.06″ | 6.29″ | 1.48″ | 1,500 | 1.52 | $90.97 |
|
|
| S0433-07100-EY1 | Bronze Bushing | 1/4″ | 4.00″ | 3.28″ | 0.40″ | 1.07″ | 1.45″ | 4.06″ | 7.93″ | 1.80″ | 2,000 | 3.13 | $133.61 |
|
|
| S0433-08125-EY1 | Bronze Bushing | 5/16″ | 5.00″ | 4.20″ | 0.50″ | 1.33″ | 1.75″ | 5.10″ | 9.85″ | 1.80″ | 3,000 | 4.27 | $210.25 |
|
|
| S0433-10150-EY1 | Bronze Bushing | 3/8″ | 6.00″ | 5.00″ | 0.62″ | 1.49″ | 2.02″ | 6.10″ | 11.56″ | 2.20″ | 4,000 | 7.74 | $328.70 |
|
|
| S0434-03050-EY1 | Stainless Bearing | 1/8″ | 2.00″ | 1.64″ | 0.25″ | 0.57″ | 0.77″ | 2.04″ | 4.10″ | 0.99″ | 500 | 0.46 | $60.11 |
|
|
| S0434-05075-EY1 | Stainless Bearing | 3/16″ | 3.00″ | 2.42″ | 0.33″ | 0.93″ | 1.25″ | 3.06″ | 6.29″ | 1.48″ | 1,500 | 1.52 | $106.98 |
|
|
| S0434-07100-EY1 | Stainless Bearing | 1/4″ | 4.00″ | 3.28″ | 0.40″ | 1.07″ | 1.45″ | 4.06″ | 7.93″ | 1.80″ | 2,000 | 3.08 | $170.78 |
|
|
| S0434-08125-EY1 | Stainless Bearing | 5/16″ | 5.00″ | 4.20″ | 0.50″ | 1.33″ | 1.75″ | 5.10″ | 9.85″ | 1.80″ | 3,000 | 4.21 | $247.37 |
|
|
| S0434-10150-EY1 | Stainless Bearing | 3/8″ | 6.00″ | 5.00″ | 0.62″ | 1.49″ | 2.02″ | 6.10″ | 11.56″ | 2.20″ | 4,000 | 7.77 | $375.10 |
|
