PULLPRO® Swivel Eye Block LoLOAD – Wire
PULLPRO® Swivel Eye Block LoLOAD – Wire

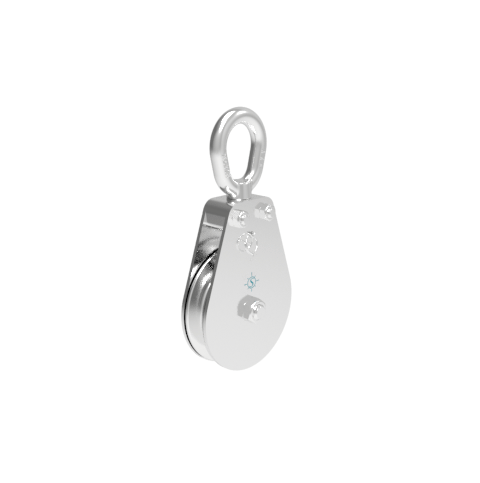

The PULLPRO® Swivel Eye Block LoLOAD – Wire delivers strength with a forged 316 stainless swivel eye and cast stainless steel head. It supports flexible rigging and handles demanding environments. Polished cheeks improve durability and clearly display wire rope size and working load limit. A stainless locknut allows fast sheave removal for premade wire rope installation or service. The LoLOAD design supports small turns under 90° with a low D/d ratio. This block meets B30.26 specifications.
| ITEM | Sheave Type | A (wire size) | B (sheave dia.) | C | D | E | F | X (height) | Y (length) | Z (width) | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0431-05050-EY1 | Bronze Bushing | 3/16″ | 2.00″ | 1.50″ | 0.29″ | 0.74″ | 1.00″ | 2.04″ | 4.85″ | 1.15″ | 1,000 | 0.67 | $53.13 |
|
|
| S0431-07063-EY1 | Bronze Bushing | 1/4″ | 2.50″ | 1.90″ | 0.33″ | 0.93″ | 1.25″ | 2.56″ | 5.87″ | 1.48″ | 1,500 | 1.35 | $88.46 |
|
|
| S0431-08078-EY1 | Bronze Bushing | 5/16″ | 3.13″ | 2.33″ | 0.40″ | 1.07″ | 1.45″ | 3.20″ | 7.69″ | 1.80″ | 2,000 | 2.72 | $131.47 |
|
|
| S0431-10100-EY1 | Bronze Bushing | 3/8″ | 4.00″ | 3.04″ | 0.50″ | 1.33″ | 1.75″ | 4.06″ | 8.41″ | 1.80″ | 3,000 | 3.42 | $177.87 |
|
|
| S0432-05050-EY1 | Stainless Bearing | 3/16″ | 2.00″ | 1.50″ | 0.29″ | 0.74″ | 1.00″ | 2.04″ | 4.85″ | 1.15″ | 1,000 | $73.26 |
|
||
| S0432-07063-EY1 | Stainless Bearing | 1/4″ | 2.50″ | 1.90″ | 0.33″ | 0.93″ | 1.25″ | 2.56″ | 5.87″ | 1.48″ | 1,500 | 1.32 | $104.31 |
|
|
| S0432-08078-EY1 | Stainless Bearing | 5/16″ | 3.13″ | 2.33″ | 0.40″ | 1.07″ | 1.45″ | 3.20″ | 7.69″ | 1.80″ | 2,000 | 2.65 | $168.65 |
|
|
| S0432-10100-EY1 | Stainless Bearing | 3/8″ | 4.00″ | 3.04″ | 0.50″ | 1.33″ | 1.75″ | 4.06″ | 8.41″ | 1.80″ | 3,000 | 3.44 | $215.04 |
|
