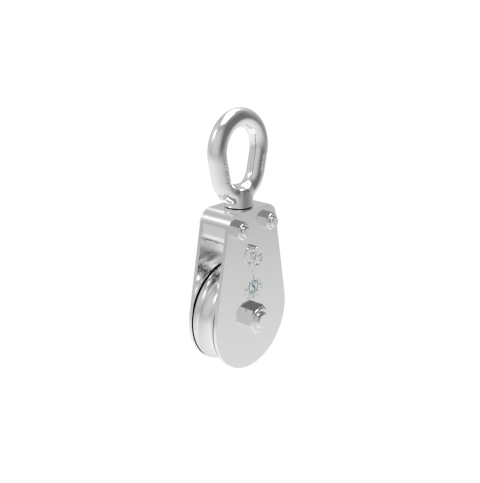

PULLPRO® Swivel Eye Block - Rope
PULLPRO® Swivel Eye Block - Rope
The Stainless PULLPRO® Swivel Eye Block – Rope features a forged 316 stainless steel swivel eye for superior strength and fatigue resistance. Its cast 316 stainless steel head allows for multiple rigging configurations. Polished stainless cheeks provide lasting durability and display fibrous rope size and working load limit. A stainless locknut allows for easy sheave removal during premade rope installation and service. The 316 stainless sheave offers exceptional corrosion resistance and is available in Bronze Bushing (S0429) or Stainless Bearing (S0430) options. This block meets B30.26 specifications.
| ITEM | Sheave Type | A(rope size) | B(sheave dia.) | C | D | E | F | X(height) | Y(length) | Z(width) | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0429-12050-EY1 | Bronze Bushing | 7/16" | 2.00" | 1.65" | 0.29" | 0.74" | 1.00" | 2.04" | 4.85" | 1.15" | 1,000 | 0.69 | $53.60 |
|
|
| S0429-13063-EY1 | Bronze Bushing | 1/2" | 2.50" | 2.05" | 0.33" | 0.93" | 1.25" | 2.56" | 5.87" | 1.48" | 1,500 | 1.34 | $88.22 |
|
|
| S0429-16079-EY1 | Bronze Bushing | 5/8" | 3.13" | 2.53" | 0.50" | 1.33" | 1.75" | 3.20" | 7.69" | 1.80" | 3,000 | 2.62 | $140.54 |
|
|
| S0429-20095-EY1 | Bronze Bushing | 3/4" | 3.75" | 3.02" | 0.62" | 1.49" | 2.02" | 3.80" | 9.21" | 2.20" | 4,000 | 4.54 | $213.38 |
|
|
| S0429-25125-EY1 | Bronze Bushing | 1" | 5.00" | 4.00" | 0.75" | 1.76" | 2.38" | 5.10" | 11.59" | 2.78" | 5,500 | 10.01 | $459.47 |
|
|
| S0430-12050-EY1 | Stainless Bearing | 7/16" | 2.00" | 1.65" | 0.29" | 0.74" | 1.00" | 2.04" | 4.85" | 1.15" | 1,000 | 0.72 | $75.07 |
|
|
| S0430-13063-EY1 | Stainless Bearing | 1/2" | 2.50" | 2.05" | 0.33" | 0.93" | 1.25" | 2.56" | 5.87" | 1.48" | 1,500 | 1.29 | $103.46 |
|
|
| S0430-16079-EY1 | Stainless Bearing | 5/8" | 3.13" | 2.53" | 0.50" | 1.33" | 1.75" | 3.20" | 7.69" | 1.80" | 3,000 | 2.56 | $177.72 |
|
|
| S0430-20095-EY1 | Stainless Bearing | 3/4" | 3.75" | 3.02" | 0.62" | 1.49" | 2.02" | 3.80" | 9.21" | 2.20" | 4,000 | 4.44 | $259.77 |
|
|
| S0430-25125-EY1 | Stainless Bearing | 1" | 5.00" | 4.03" | 0.75" | 1.76" | 2.38" | 5.10" | 11.59" | 2.78" | 5,500 | 9.78 | $503.44 |
|
