PULLPRO® Swivel Hook Block LoLOAD – Wire
PULLPRO® Swivel Hook Block LoLOAD – Wire

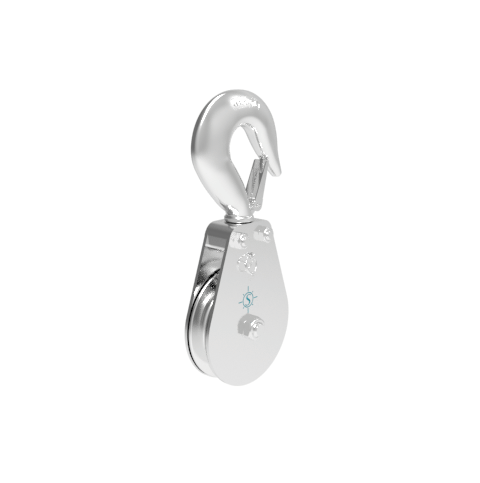

The PULLPRO® Swivel Hook Block LoLOAD – Wire delivers strength with a forged 316 stainless swivel hook. Its cast stainless head supports a variety of rigging setups. Polished cheeks improve durability and clearly show wire rope size and working load limit. A stainless locknut simplifies sheave removal for premade wire installation. The LoLOAD design works best for small deflection turns under 90° and provides a lower D/d ratio. This block meets B30.26 specifications.
| ITEM | Sheave Type | A (wire size) | B (sheave dia.) | C | D | E | F | X (height) | Y (length) | Z (width) | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0431-05050-HK1 | Bronze Bushing | 3/16″ | 2.00″ | 1.50″ | 0.59″ | 1.06″ | 0.83″ | 2.95″ | 6.31″ | 1.15″ | 1,000 | 1.14 | $72.98 |
|
|
| S0431-07063-HK1 | Bronze Bushing | 1/4″ | 2.50″ | 1.90″ | 0.65″ | 1.13″ | 0.89″ | 3.13″ | 7.23″ | 1.48″ | 1,500 | 1.91 | $108.82 |
|
|
| S0431-08078-HK1 | Bronze Bushing | 5/16″ | 3.13″ | 2.33″ | 0.78″ | 1.17″ | 0.95″ | 3.52″ | 8.68″ | 1.80″ | 2,000 | 3.46 | $103.12 |
|
|
| S0431-10100-HK1 | Bronze Bushing | 3/8″ | 4.00″ | 3.04″ | 0.88″ | 1.31″ | 1.08″ | 4.06″ | 9.85″ | 1.80″ | 3,000 | 4.63 | $212.04 |
|
|
| S0432-05050-HK1 | Stainless Bearing | 3/16″ | 2.00″ | 1.50″ | 0.59″ | 1.06″ | 0.83″ | 2.95″ | 6.31″ | 1.15″ | 1,000 | 1.17 | $93.16 |
|
|
| S0432-07063-HK1 | Stainless Bearing | 1/4″ | 2.50″ | 1.90″ | 0.65″ | 1.13″ | 0.89″ | 3.13″ | 7.23″ | 1.48″ | 1,500 | 1.88 | $124.69 |
|
|
| S0432-08078-HK1 | Stainless Bearing | 5/16″ | 3.13″ | 2.33″ | 0.78″ | 1.17″ | 0.95″ | 3.52″ | 8.68″ | 1.80″ | 2,000 | 3.39 | $198.99 |
|
|
| S0432-10100-HK1 | Stainless Bearing | 3/8″ | 4.00″ | 3.04″ | 0.88″ | 1.31″ | 1.08″ | 4.06″ | 9.85″ | 1.80″ | 3,000 | 4.65 | $249.17 |
|
