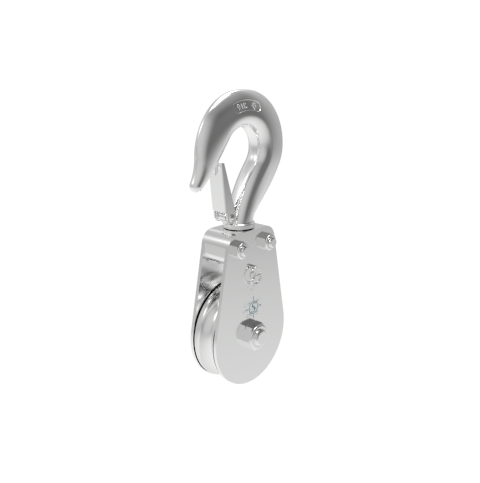

PULLPRO® Swivel Hook Block – Rope
PULLPRO® Swivel Hook Block – Rope
The PULLPRO® Swivel Hook Block – Rope delivers strength using a forged 316 stainless swivel hook and cast stainless steel head. It supports multiple rigging setups and performs well in harsh conditions. Polished cheeks improve durability and display rope size and working load limit. A stainless locknut allows fast sheave removal for premade rope installation or maintenance. The sheave also uses 316 stainless steel for excellent corrosion resistance. This block meets B30.26 specifications.
| ITEM | Sheave Type | A (rope size) | B (sheave dia.) | C | D | E | F | X (height) | Y (length) | Z (width) | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0429-12050-HK1 | Bronze Bushing | 7/16″ | 2.00″ | 1.65″ | 0.59″ | 1.06″ | 0.83″ | 2.95″ | 6.31″ | 1.15″ | 1,000 | 1.14 | $73.49 |
|
|
| S0429-13063-HK1 | Bronze Bushing | 1/2″ | 2.50″ | 2.05″ | 0.65″ | 1.13″ | 0.89″ | 3.13″ | 7.23″ | 1.48″ | 1,500 | 1.19 | $108.59 |
|
|
| S0429-16079-HK1 | Bronze Bushing | 5/8″ | 3.13″ | 2.53″ | 0.88″ | 1.31″ | 1.08″ | 3.96″ | 8.68″ | 1.80″ | 3,000 | 3.36 | $174.72 |
|
|
| S0429-20095-HK1 | Bronze Bushing | 3/4″ | 3.75″ | 3.02″ | 1.00″ | 1.58″ | 1.36″ | 4.54″ | 10.72″ | 2.20″ | 4,000 | 6.06 | $243.19 |
|
|
| S0430-12050-HK1 | Stainless Bearing | 7/16″ | 2.00″ | 1.65″ | 0.59″ | 1.06″ | 0.83″ | 2.95″ | 6.31″ | 1.15″ | 1,000 | 1.19 | $94.96 |
|
|
| S0430-13063-HK1 | Stainless Bearing | 1/2″ | 2.50″ | 2.05″ | 0.65″ | 1.13″ | 0.89″ | 3.13″ | 7.23″ | 1.48″ | 1,500 | 1.85 | $123.82 |
|
|
| S0430-16079-HK1 | Stainless Bearing | 5/8″ | 3.13″ | 2.53″ | 0.88″ | 1.31″ | 1.08″ | 3.96″ | 8.68″ | 1.80″ | 3,000 | 3.30 | $211.85 |
|
|
| S0430-20095-HK1 | Stainless Bearing | 3/4″ | 3.75″ | 3.02″ | 1.00″ | 1.58″ | 1.36″ | 4.54″ | 10.72″ | 2.20″ | 4,000 | 5.96 | $289.58 |
|
