Rod End Blank
Rod End Blank

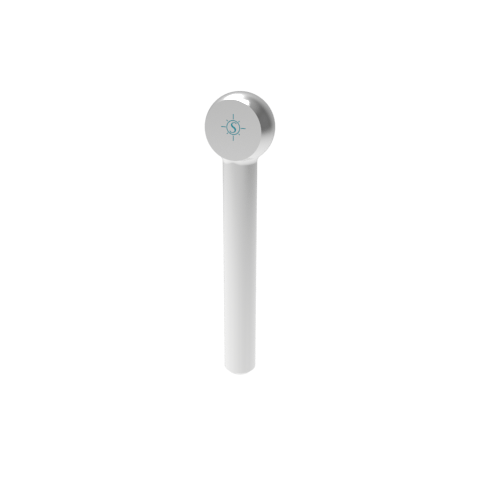

Customize your own eye bolt with this Rod End Blank, built for flexibility and precision. Choose from sizes ranging from 3/8″ to 1″. Crafted from tough 304 stainless steel, it resists corrosion and stands up to demanding conditions.

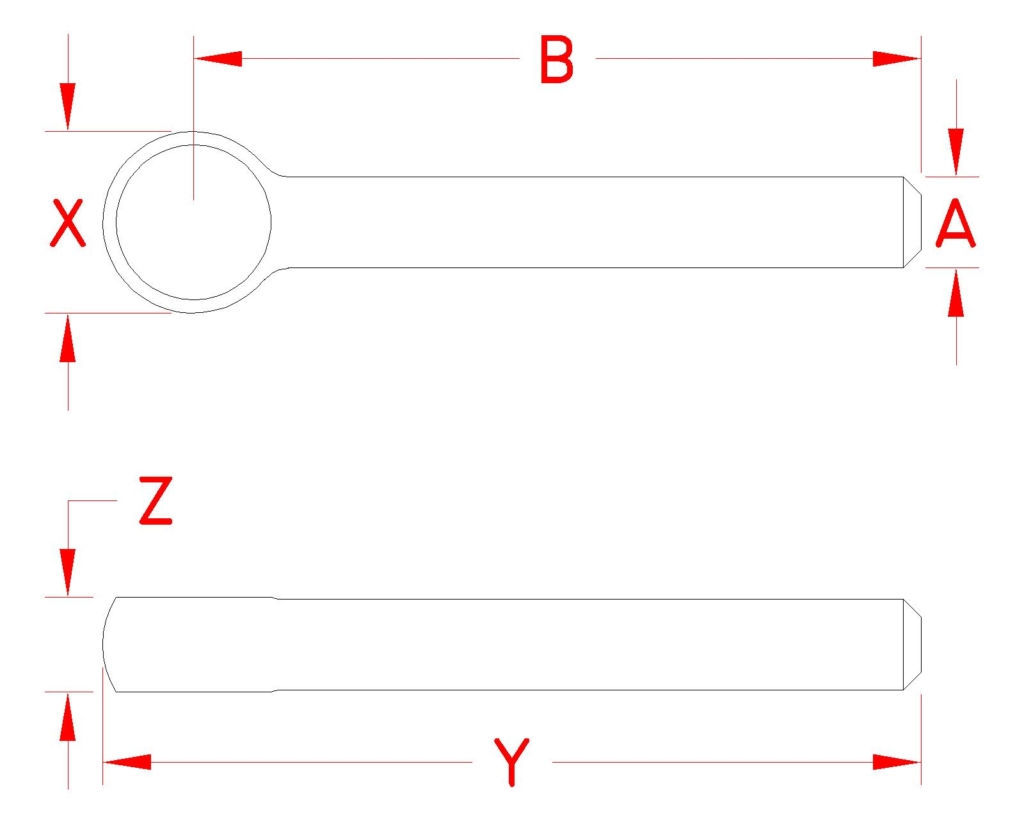

| ITEM | A (size) | B | X | Y | Z | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| S0360-10075 | 3/8″ | 3.00″ | 0.75″ | 3.38″ | 0.38″ | 0.12 | $6.19 |
|
|
| S0360-10100 | 3/8″ | 4.00″ | 0.75″ | 4.38″ | 0.38″ | 0.15 | $6.83 |
|
|
| S0360-13100 | 1/2″ | 4.00″ | 1.00″ | 4.50″ | 0.50″ | 0.30 | $7.58 |
|
|
| S0360-13125 | 1/2″ | 5.00″ | 1.00″ | 5.50″ | 0.50″ | 0.35 | $9.55 |
|
|
| S0360-13150 | 1/2″ | 6.00″ | 1.00″ | 6.50″ | 0.50″ | 0.41 | $9.90 |
|
|
| S0360-16125 | 5/8″ | 5.00″ | 1.25″ | 5.63″ | 0.63″ | 0.58 | $14.48 |
|
|
| S0360-16150 | 5/8″ | 6.00″ | 1.25″ | 6.63″ | 0.63″ | 0.67 | $19.85 |
|
|
| S0360-16200 | 5/8″ | 8.00″ | 1.25″ | 8.63″ | 0.63″ | 0.82 | $20.98 |
|
|
| S0360-20125 | 3/4″ | 5.00″ | 1.50″ | 5.75″ | 0.75″ | 0.93 | $22.71 |
|
|
| S0360-20150 | 3/4″ | 6.00″ | 1.50″ | 6.75″ | 0.75″ | 1.03 | $25.39 |
|
|
| S0360-20175 | 3/4″ | 7.00″ | 1.50″ | 7.75″ | 0.75″ | 1.13 | $29.75 |
|
|
| S0360-22150 | 7/8″ | 6.00″ | 1.75″ | 6.88″ | 0.88″ | 1.40 | $37.82 |
|
|
| S0360-20200 | 3/4″ | 8.00″ | 1.50″ | 8.75″ | 0.75″ | 1.25 | $32.49 |
|
|
| S0360-25300 | 1″ | 10.00″ | 2.00″ | 11.00″ | 1.00″ | 2.90 | $72.56 |
|
