Rope Sheave – Bushing
Rope Sheave – Bushing

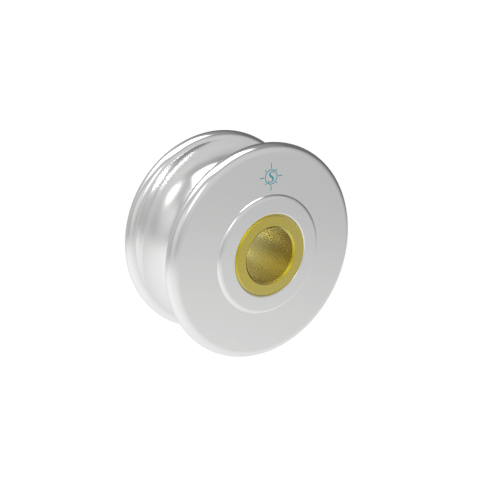

The Stainless Rope Sheave includes a bronze bushing and fits rope sizes from 1/4″ to 1″. It delivers smooth operation and a secure fit for various projects. Made from 304 stainless steel, this sheave resists corrosion and performs reliably in harsh environments. Use it in marine and industrial rigging applications where durability matters.
| ITEM | A (rope size) | B (bore) | C (rim width) | D | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0400-0025 | 1/4″ | 1/4″ | 0.59″ | 0.63″ | 0.59″ | 1.00″ | 1.00″ | 400 | 0.08 | $8.20 |
|
|
| S0400-0032 | 5/16″ | 3/8″ | 0.57″ | 0.88″ | 0.61″ | 1.25″ | 1.25″ | 600 | 0.12 | $10.29 |
|
|
| S0400-0050 | 3/8″ | 3/8″ | 0.78″ | 1.38″ | 0.81″ | 2.00″ | 2.00″ | 1,000 | 0.26 | $21.56 |
|
