Straight D Shackle with Screw Pin-Forged
Straight D Shackle with Screw Pin-Forged
Use the Stainless Forged Straight D Shackle for secure, everyday connections. It features a screw pin that allows easy opening and reliable fastening. Choose from sizes ranging from 3/16″ to 3/4″ to match your setup. Made from 316 stainless steel, this shackle resists corrosion and performs well in harsh marine and industrial environments.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0117-0005 | 3/16" | 0.19" | 0.41" | 0.66" | 1.10" | 1.15" | 0.41" | 500 | 0.03 | $2.44 |
|
|
| S0117-0006 | 1/4" | 0.23" | 0.52" | 0.83" | 1.30" | 1.44" | 0.47" | 750 | 0.05 | $3.12 |
|
|
| S0117-0008 | 5/16" | 0.31" | 0.66" | 1.10" | 1.74" | 1.85" | 0.62" | 1,000 | 0.13 | $4.39 |
|
|
| S0117-0010 | 3/8" | 0.39" | 0.83" | 1.37" | 2.24" | 2.32" | 0.78" | 2,000 | 0.24 | $7.95 |
|
|
| S0117-0012 | 15/32" | 0.47" | 0.98" | 1.65" | 2.60" | 2.80" | 0.94" | 3,000 | 0.42 | $13.95 |
|
|

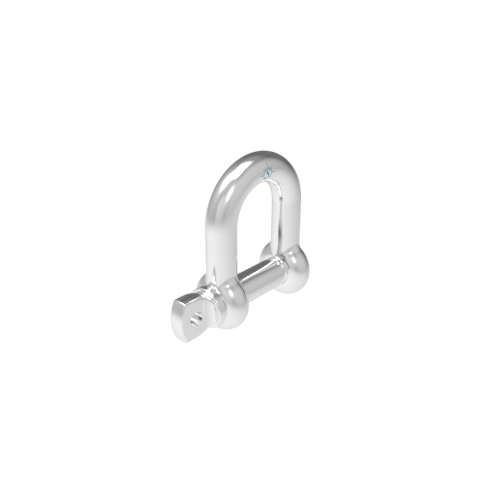

| S0117-0016 | 5/8" | 0.62" | 1.31" | 2.20" | 3.40" | 3.60" | 1.20" | 4,000 | 0.98 | $29.51 |
|
|
| S0117-0020 | 3/4" | 0.77" | 1.62" | 2.77" | 4.32" | 4.70" | 1.57" | 5,500 | 1.94 | $42.93 |
|
