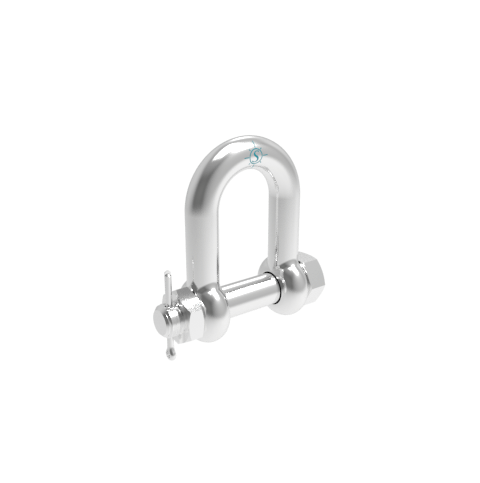

Straight D Shackle with Bolt - Forged
Straight D Shackle with Bolt - Forged
The Stainless Forged Straight D Shackle with bolt includes a secure screw pin. It’s available in sizes from 1/4″ to 3/4″ to fit a variety of rigging needs. Made from 316 stainless steel, this shackle resists corrosion and performs well in marine and industrial environments.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0117-SA06 | 1/4" | 0.23" | 0.52" | 0.83" | 1.37" | 1.44" | 0.47" | 750 | 0.05 | $3.35 |
|
|
| S0117-SA08 | 5/16" | 0.31" | 0.66" | 1.10" | 1.77" | 1.85" | 0.62" | 1,000 | 0.13 | $4.95 |
|
|
| S0117-SA10 | 3/8" | 0.39" | 0.83" | 1.37" | 2.20" | 2.32" | 0.78" | 2,000 | 0.24 | $8.45 |
|
|
| S0117-SA12 | 15/32" | 0.47" | 0.98" | 1.65" | 2.63" | 2.80" | 0.94" | 3,000 | 0.42 | $14.95 |
|
|
| S0117-SA16 | 5/8" | 0.62" | 1.31" | 2.20" | 3.40" | 3.60" | 1.20" | 4,000 | 0.98 | $32.51 |
|
|
| S0117-SA20 | 3/4" | 0.77" | 1.52" | 2.77" | 4.30" | 4.70" | 1.57" | 5,500 | 2.15 | $45.93 |
|
