PULLPRO® Rope Sheave, Bearing
PULLPRO® Rope Sheave, Bearing

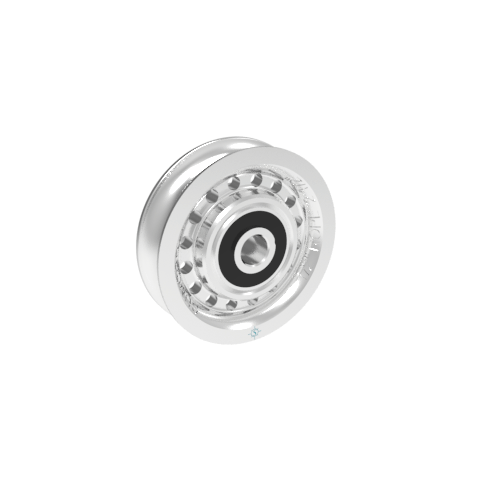

The PULLPRO® Stainless Rope Sheave fits rope sizes from 3/8″ to 1″. It features a 440C hardened stainless steel ball bearing built to handle high static loads. The bearing comes packed with water-resistant grease and includes a removable Teflon seal. This design protects the bearing from debris and allows easy maintenance. The 316 stainless steel construction resists corrosion and delivers strong performance in tough marine and industrial settings. PULLPRO® sheaves are strong, safe, and built to last. A variety of sizes and hub styles make it easy to match your project. Each sheave balances groove diameter, throat angle, and weight for smooth and reliable operation.
| ITEM | A(rope size) | B(bore) | C(rim width) | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0415-1207 | 3/8"-7/16" | 0.25" | 0.51" | 1.65" | 0.59" | 2.00" | 2.00" | 1,000 | 0.26 | $38.15 |
|
|
| S0415-1310 | 1/2" | 0.38" | 0.63" | 2.05" | 0.71" | 2.50" | 2.50" | 1,500 | 0.44 | $47.42 |
|
|
| S0415-1613 | 5/8" | 0.50" | 0.77" | 2.53" | 0.86" | 3.13" | 3.13" | 3,000 | 0.67 | $74.59 |
|
|
| S0415-2016 | 3/4" | 0.63" | 0.92" | 3.02" | 1.02" | 3.75" | 3.75" | 4,000 | 1.08 | $97.77 |
|
|
| S0415-2520 | 1" | 0.75" | 1.26" | 4.03" | 1.40" | 5.00" | 5.00" | 5,500 | 2.67 | $169.98 |
|
