Shoulder Eye Rivet
Shoulder Eye Rivet

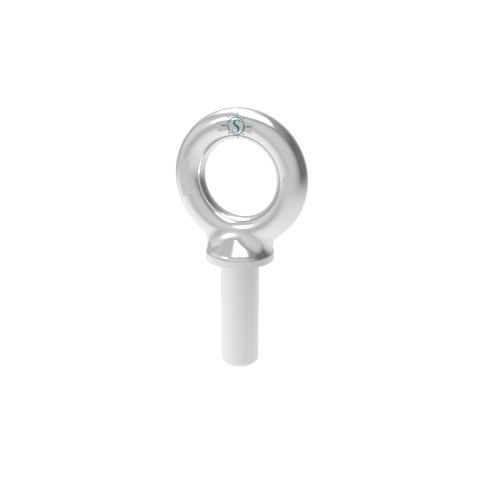

The Stainless Shoulder Eye Rivet features a machined shoulder and shaft for a precise fit and secure seating. This unthreaded eye bolt comes in a 1/2″ size and is made from 316-NM stainless steel for excellent corrosion resistance and long-term durability. Ideal for marine, industrial, and custom applications.

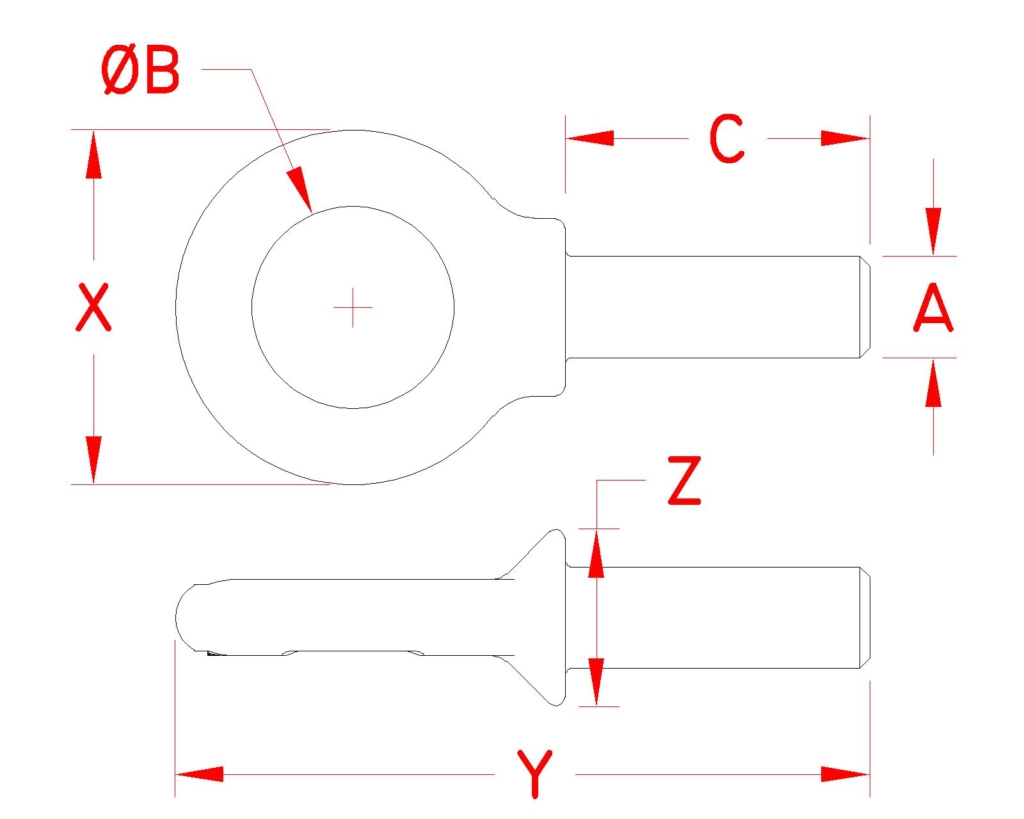

| ITEM | A(size) | B | C | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S0314-R1304 | 1/2" | 1.00" | 1.50" | 1.78" | 3.48" | 0.89" | 2,150 | 0.27 | $20.70 |
|
|
| S0314-R1308 | 1/2" | 1.00" | 3.25" | 1.78" | 5.20" | 0.89" | 2,150 | 0.38 | $28.92 |
|
