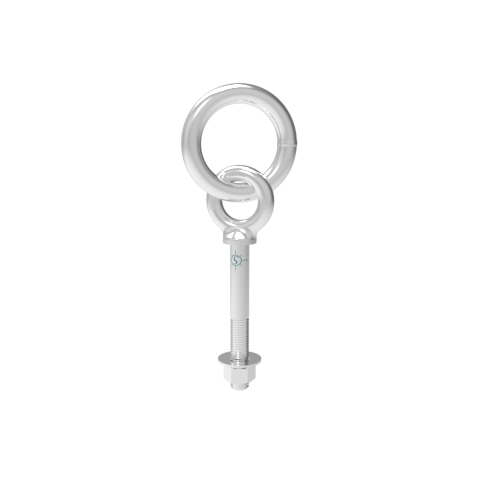

Shoulder Ring Bolt
Shoulder Ring Bolt
The Stainless Shoulder Ring Bolt features UNC threads and includes one nut and one washer. Available in sizes from 1/4″ to 3/4″, it’s made from 316 stainless steel for excellent corrosion resistance and long-term durability. Ideal for marine and industrial use.

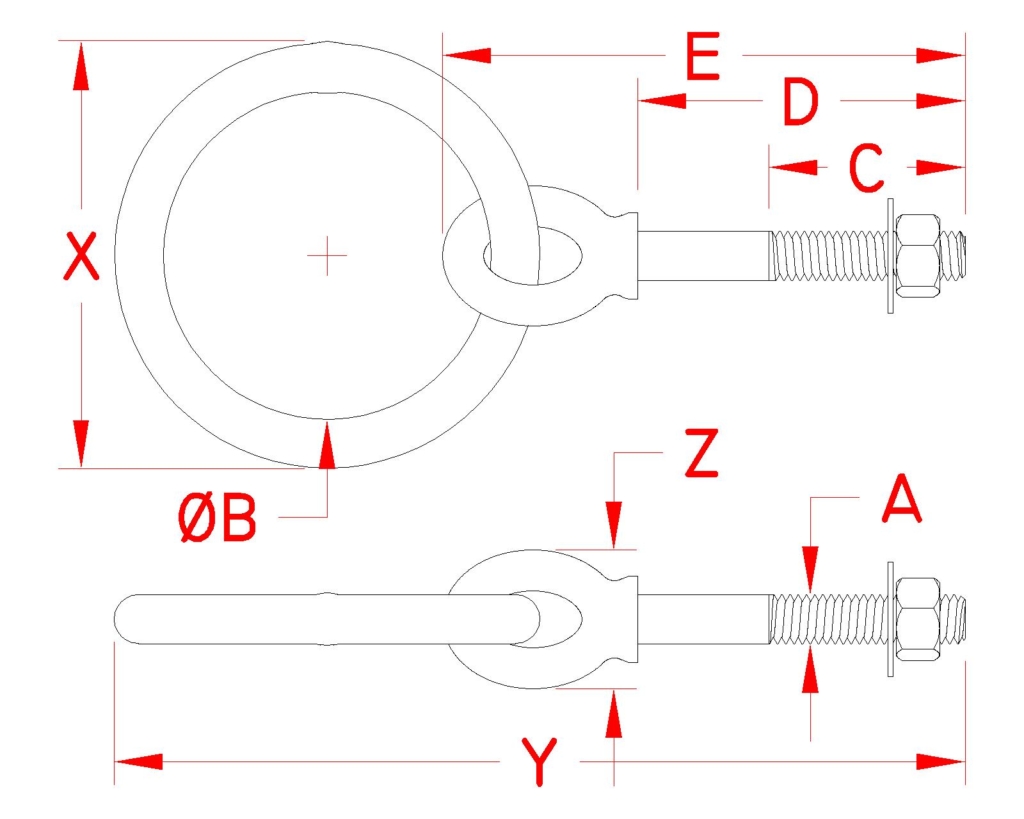

| ITEM | A (size) | B | C | D | E | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0330-0750 | 1/4″ | 1.75″ | 1.50″ | 2.00″ | 2.94″ | 2.00″ | 4.80″ | 0.91″ | 250 | 0.14 | $13.89 |
|
|
| S0330-0855 | 5/16″ | 2.00″ | 1.50″ | 2.25″ | 3.50″ | 2.63″ | 5.40″ | 0.78″ | 400 | 0.27 | $19.31 |
|
|
| S0330-1012 | 3/8″ | 2.50″ | 2.50″ | 4.50″ | 6.00″ | 3.25″ | 8.35″ | 1.00″ | 600 | 0.54 | $30.67 |
|
|
| S0330-1065 | 3/8″ | 2.50″ | 1.50″ | 2.50″ | 4.00″ | 3.25″ | 6.40″ | 0.83″ | 600 | 0.48 | $25.61 |
|
|
| S0330-1315 | 1/2″ | 3.00″ | 3.00″ | 6.00″ | 7.75″ | 4.00″ | 10.75″ | 1.15″ | 1,100 | 1.17 | $55.72 |
|
|
| S0330-1380 | 1/2″ | 3.00″ | 1.50″ | 3.25″ | 5.20″ | 4.00″ | 8.20″ | 1.15″ | 1,100 | 1.06 | $48.66 |
|
|
| S0330-1615 | 5/8″ | 3.00″ | 3.00″ | 6.00″ | 8.50″ | 4.25″ | 11.20″ | 1.46″ | 2,000 | 1.95 | $123.20 |
|
|
| S0330-2015 | 3/4″ | 3.00″ | 3.00″ | 6.00″ | 8.87″ | 4.50″ | 11.60″ | 1.82″ | 2,600 | 2.89 | $201.01 |
|
