Straight D Shackle with Captive Pin
Straight D Shackle with Captive Pin

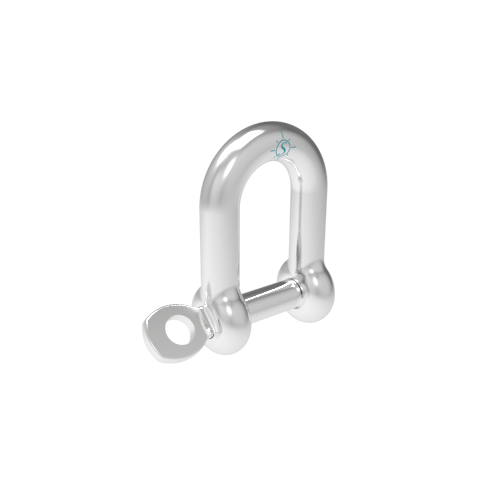

The Stainless Straight D Shackle features a captive pin with a self-locking design. The pin stays attached to the body and won’t fall out when opened. It won’t back out during use, making it safer and easier to handle. Made from 316 stainless steel, this shackle resists corrosion and offers long-term durability. Available in sizes from 5/32″ to 15/32″, it’s ideal for marine and industrial use where dropped pins are a concern.
| ITEM | A(size) | B | C | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0115-CP04 | 5/32" | 0.17" | 0.32" | 0.55" | 0.91" | 0.95" | 0.31" | 200 | 0.016 | $4.35 |
|
|
| S0115-CP05 | 3/16" | 0.19" | 0.37" | 0.69" | 1.14" | 1.16" | 0.39" | 500 | 0.032 | $4.95 |
|
|
| S0115-CP06 | 1/4" | 0.23" | 0.47" | 0.82" | 1.31" | 1.40" | 0.47" | 750 | 0.052 | $6.16 |
|
|
| S0115-CP08 | 5/16" | 0.31" | 0.62" | 1.10" | 1.77" | 1.87" | 0.61" | 1,000 | 0.122 | $9.03 |
|
|
| S0115-CP10 | 3/8" | 0.39" | 0.79" | 1.34" | 2.16" | 2.38" | 0.80" | 1,200 | 0.252 | $15.52 |
|
|
| S0115-CP12 | 15/32" | 0.47" | 0.95" | 1.65" | 2.06" | 2.77" | 0.92" | 1,500 | 0.408 | $26.96 |
|
