Surface Mount Block (Rope)
Surface Mount Block (Rope)

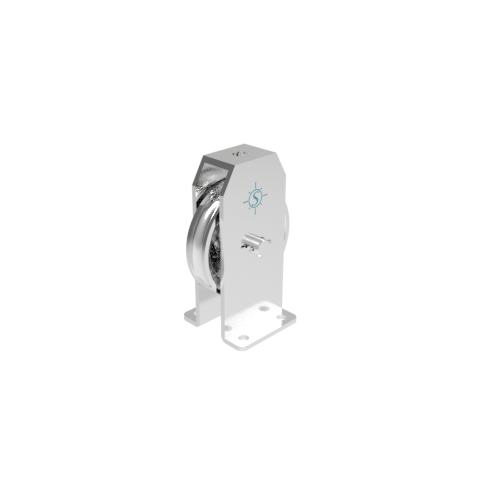

The Stainless Surface Mount Block handles rope sizes from 3/8″ to 5/8″ and mounts securely with four fasteners. Its precision-cast stainless body provides strength, while the bronze bushing ensures smooth operation. This block delivers dependable performance in marine and industrial rigging environments.
| ITEM | A | B(rope size) | C | D | E | F(fastener) | X | Y | Z | WLL(lb) | WT(lb) | Sheave(part #) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0422-0050-R | 2.25" | 3/8" | 1.88" | 1.75" | 1.00" | 3/16" | 3.50" | 2.25" | 2.25" | 1,000 | 0.95 | S0410-1010 | $83.66 |
|
|
| S0422-0075-R | 3.25" | 1/2" | 2.75" | 2.12" | 1.50" | 1/4" | 5.00" | 3.25" | 2.75" | 1,500 | 2.02 | S0410-1313 | $104.16 |
|
|
| S0422-0100-R | 4.25" | 5/8" | 3.63" | 2.40" | 2.00" | 3/8" | 6.50" | 4.25" | 3.25" | 3,000 | 4.16 | S0410-1616 | $166.34 |
|
