Swivel Block
Swivel Block

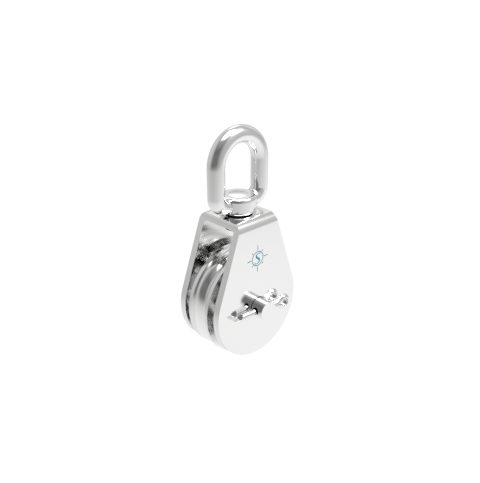

The Stainless Swivel Block fits rope sizes from 1/4″ to 3/8″. Its body is made from grade 304 stainless steel, and the removable sheave is available in grade 316 stainless steel. A wire rope sheave option is also offered for added versatility. This block is ideal for marine and industrial rigging applications.
| ITEM | A | B(rope size) | C | D | X | Y | Z | WLL(lb) | WT(lb) | Sheave(part #) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0403-0038 | 1.75" | 5/16" | 0.63" | 1.44" | 3.72" | 1.70" | 1.32" | 600 | 0.50 | S0410-0808 | $46.73 |
|
|
| S0403-0025 | 1.25" | 1/4" | 0.58" | 1.00" | 3.28" | 1.19" | 1.16" | 400 | 0.33 | S0410-0707 | $44.68 |
|
|
| S0403-0050 | 2.25" | 3/8" | 0.82" | 1.88" | 5.00" | 2.14" | 1.58" | 1,000 | 0.92 | S0410-1010 | $53.78 |
|
