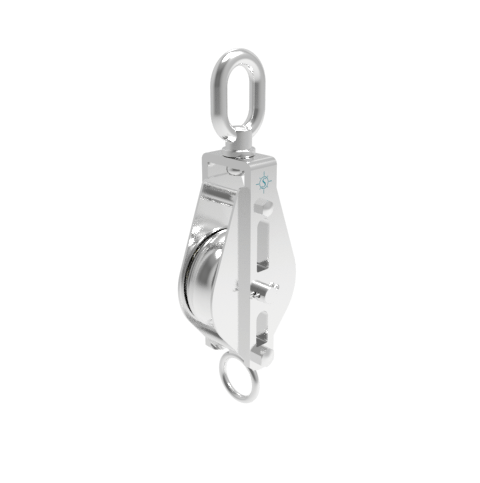

Stainless Steel Swivel Eye Block
Stainless Steel Swivel Eye Block
The Stainless Swivel Eye Block handles rope sizes from 1/2″ to 3/4″ with strength and efficiency. Its precision-cast 304 stainless steel body provides durability in harsh conditions. Choose a removable sheave in either 304 or 316 stainless steel for the corrosion resistance you need. This block performs reliably in marine and industrial rigging applications where long-lasting hardware matters.
| ITEM | A | B (rope size) | C | D | X | Y | Z | WLL (lb) | WT (lb) | Sheave (part #) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0423-E075 | 3″ | 1/2″ | 0.95″ | 2.12″ | 10.00″ | 3.26″ | 2.30″ | 1,400 | 2.22 | S0400-0075 | $74.24 |
|
|
| S0423-E100 | 4″ | 5/8″ | 0.95″ | 2.91″ | 12.50″ | 4.45″ | 2.40″ | 2,000 | 4.08 | S0400-0100 | $124.03 |
|
|
| S0423-E125 | 5″ | 3/4″ | 0.95″ | 4.05″ | 14.00″ | 5.51″ | 2.60″ | 3,000 | 5.38 | S0400-0125 | $262.77 |
|
