Stainless Steel Threaded Rod
Stainless Steel Threaded Rod
The Stainless Threaded Rod features UNC threads and works well for custom eye bolt setups. Weld it to an eye nut to create a strong, custom connection. Available sizes range from 1/4″ to 1″. Made from 316 stainless steel, this rod resists corrosion and performs in harsh marine and industrial environments.

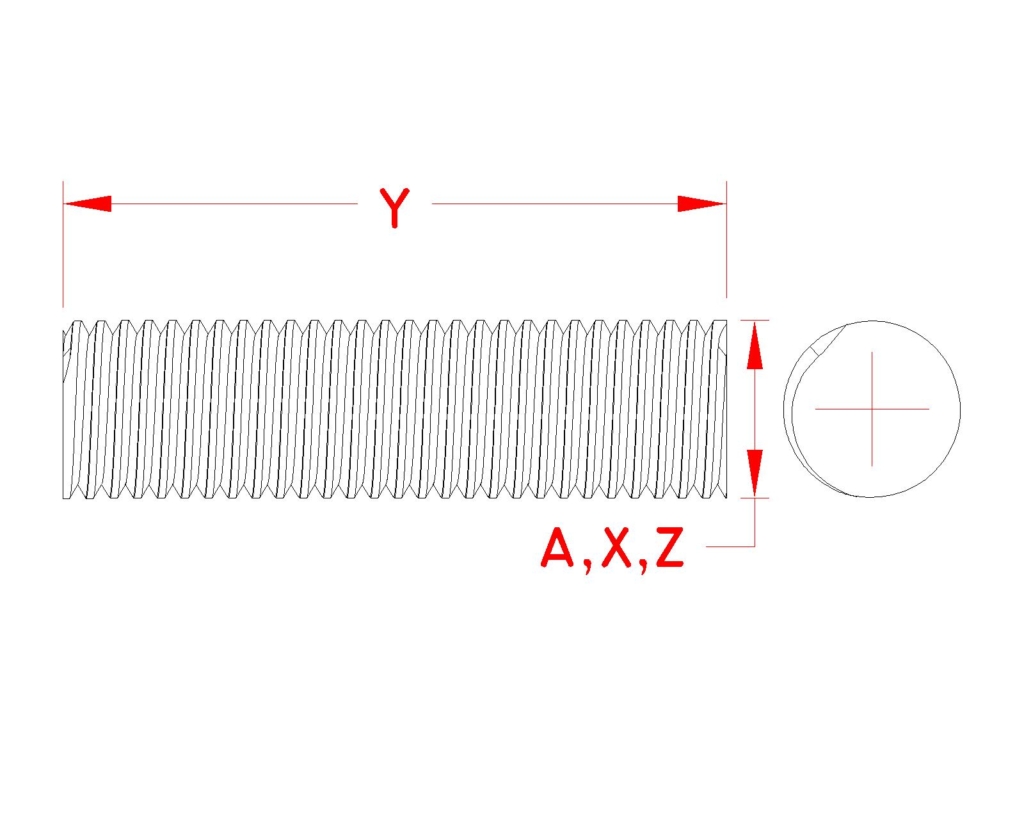

| ITEM | A (size) | THREAD | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| S0300-0007 | 1/4″ | 1/4″-20 | 0.23″ | 72.00″ | 0.23″ | 475 | 0.76 | $31.98 |
|
|
| S0300-0008 | 5/16″ | 5/16″-18 | 0.31″ | 72.00″ | 0.31″ | 780 | 1.22 | $78.14 |
|
|
| S0300-0010 | 3/8″ | 3/8″-16 | 0.36″ | 72.00″ | 0.36″ | 1,160 | 2.3 | $84.40 |
|
|
| S0300-0013 | 1/2″ | 1/2″-13 | 0.48″ | 72.00″ | 0.48″ | 2,120 | 3.25 | $100.48 |
|
|
| S0300-0016 | 5/8″ | 5/8″-11 | 0.61″ | 72.00″ | 0.61″ | 3,390 | 5.15 | $149.91 |
|
|
| S0300-0020 | 3/4″ | 3/4″-10 | 0.73″ | 72.00″ | 0.73″ | 5,000 | 7.55 | $162.23 |
|
|
| S0300-0022 | 7/8″ | 7/8″-9 | 0.86″ | 72.00″ | 0.86″ | 6,930 | 10.26 | $206.06 |
|
|
| S0300-0025 | 1″ | 1″-8 | 0.98″ | 72.00″ | 0.98″ | 9,090 | 13.64 | $465.67 |
|
