Threaded Yoke End, Right Hand, UNC
Threaded Yoke End, Right Hand, UNC
The Right-Hand Stainless Threaded Yoke End provides exceptional strength and durability for tough environments. With UNC threads, it ensures a secure fit and comes in sizes ranging from 3/16″ to 1″, making it ideal for turnbuckle applications. Made from premium 316-NM stainless steel, it withstands corrosion and harsh marine or industrial conditions. Its sturdy design delivers a strong, long-lasting hold, making it a reliable choice for high-tension rigging systems.

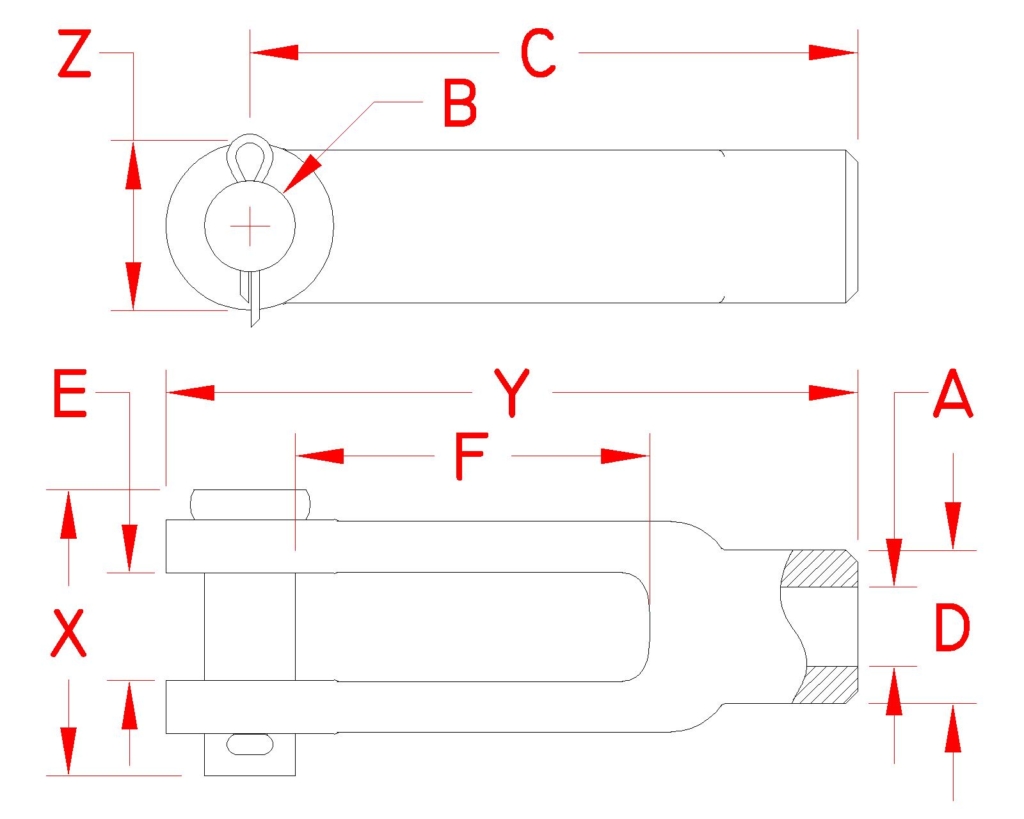

| ITEM | A(size) | B | C | D | E | F | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0113-RC05 | 3/16" | 0.19" | 1.56" | 0.31" | 0.19" | 0.89" | 0.68" | 1.81" | 0.39" | 300 | 0.04 | $7.33 |
|
|
| S0113-RC07 | 1/4" | 0.25" | 2.00" | 0.44" | 0.29" | 1.08" | 0.92" | 2.32" | 0.53" | 500 | 0.10 | $12.87 |
|
|
| S0113-RC08 | 5/16" | 0.31" | 2.25" | 0.50" | 0.33" | 1.26" | 1.11" | 2.57" | 0.64" | 800 | 0.14 | $19.48 |
|
|
| S0113-RC10 | 3/8" | 0.38" | 2.50" | 0.63" | 0.44" | 1.46" | 1.30" | 2.96" | 0.71" | 1,200 | 0.24 | $28.18 |
|
|
| S0113-RC12 | 7/16″ | 0.45" | 3.00" | 0.86" | 0.56" | 1.65" | 1.56" | 3.51" | 1.01" | 1,700 | 0.50 | $49.82 |
|
|
| S0113-RC13 | 1/2" | 0.50" | 3.00" | 0.81" | 0.58" | 1.65" | 1.58" | 3.50" | 0.97" | 2,200 | 0.50 | $52.85 |
|
|
| S0113-RC16 | 5/8" | 0.63" | 4.94" | 1.06" | 0.70" | 3.37" | 1.92" | 5.54" | 1.15" | 3,500 | 1.14 | $85.86 |
|
|
| S0113-RC20 | 3/4" | 0.75" | 6.06" | 1.25" | 0.79" | 4.25" | 2.24" | 6.77" | 1.44" | 5,200 | 2.06 | $125.24 |
|
|
| S0113-RC25 | 1" | 0.97" | 8.00" | 1.63" | 1.06" | 5.52" | 2.97" | 8.97" | 1.94" | 8,000 | 4.32 | $344.58 |
|
