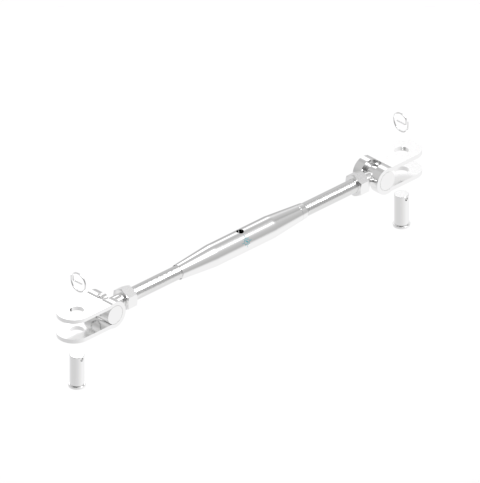

Toggle and Toggle Turnbuckle
Toggle and Toggle Turnbuckle
The Stainless Toggle & Toggle Turnbuckle features a closed-body design. It comes in sizes from 3/16″ to 5/8″ to fit a variety of projects. Made from 316 stainless steel, it resists corrosion and performs well in harsh environments. Use it in marine and industrial applications where flexibility and durability matter.

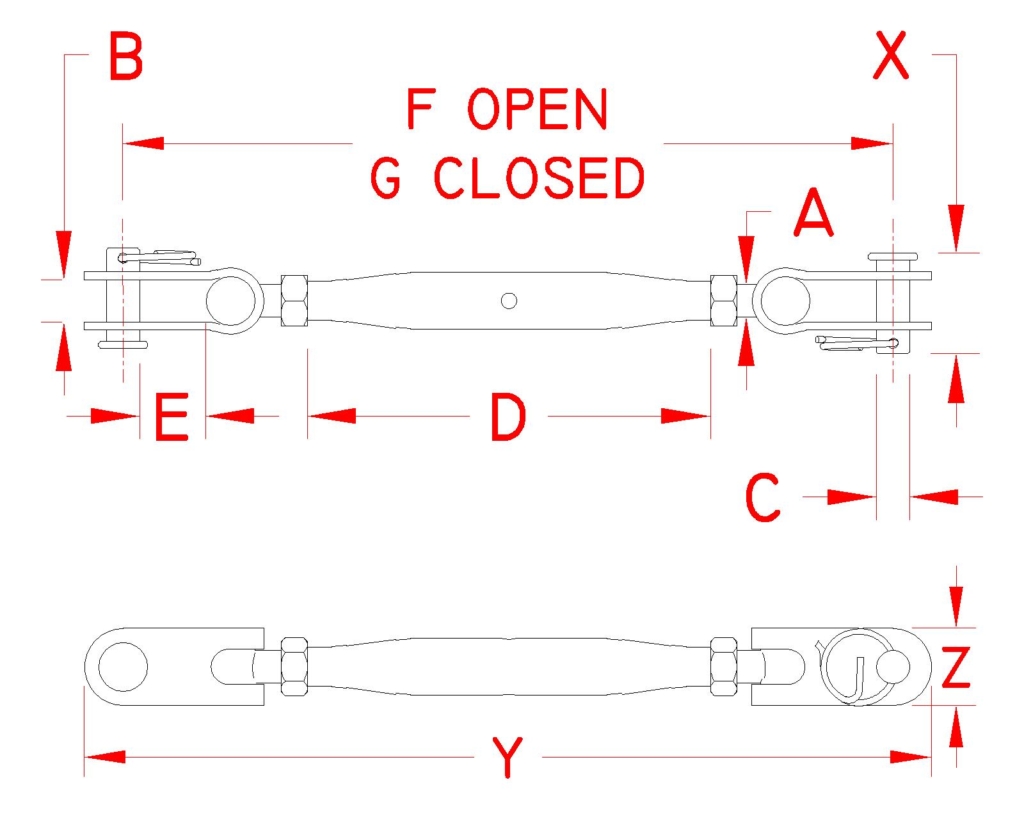

| ITEM | A(size) | B | C | D | E | F | G | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0783-0005 | 3/16" | 0.26" | 0.19" | 3.56" | 0.58" | 9.25" | 6.00" | 0.51" | 6.72" | 0.50" | 240 | 0.16 | $22.28 |
|
|
| S0783-0007 | 1/4" | 0.35" | 0.23" | 4.20" | 0.45" | 10.81" | 6.87" | 0.59" | 7.48" | 0.82" | 550 | 0.26 | $30.64 |
|
|
| S0783-0008 | 5/16" | 0.40" | 0.31" | 4.32" | 0.61" | 11.75" | 7.63" | 0.82" | 8.71" | 0.91" | 860 | 0.50 | $37.84 |
|
|
| S0783-0010 | 3/8" | 0.56" | 0.37" | 4.90" | 0.75" | 13.00" | 9.12" | 0.86" | 10.00" | 0.70" | 1,700 | 0.71 | $53.59 |
|
|
| S0783-0013 | 1/2" | 0.63" | 0.47" | 5.87" | 0.62" | 16.31" | 10.87" | 1.18" | 12.30" | 1.30" | 2,060 | 1.33 | $74.45 |
|
|
| S0783-0016 | 5/8" | 0.80" | 0.62" | 7.50" | 0.83" | 19.75" | 13.75" | 1.28" | 16.00" | 1.56" | 2,800 | 3.16 | $197.12 |
|
