Turnbuckle Body – Closed
Turnbuckle Body – Closed
This Stainless Closed-Body Turnbuckle is available with UNC or UNF threads. Sizes range from 3/16″ to 5/8″ to fit a variety of applications. It features a hole in the body for easy tightening with an Allen key. Made from 316 stainless steel, it offers excellent corrosion resistance and long-lasting durability. Ideal for marine and industrial use.

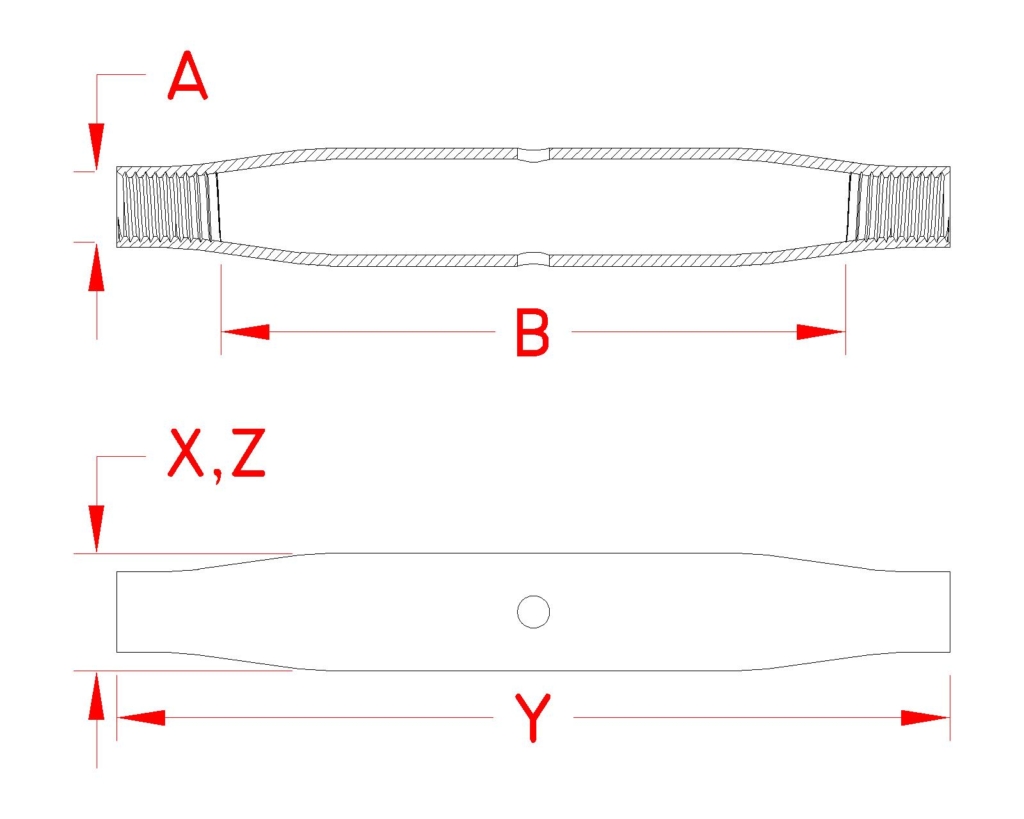

| ITEM | A (size) | B (adjustment) | X | Y | Z | Thread Type | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P0101-BD05 | 3/16″ | 3.00″ | 0.31″ | 3.65″ | 0.31″ | UNC | 300 | 0.06 | $16.16 |
|
|
| P0101-BD07 | 1/4″ | 3.50″ | 0.39″ | 4.22″ | 0.39″ | UNC | 440 | 0.07 | $21.86 |
|
|
| P0101-BD08 | 5/16″ | 3.50″ | 0.54″ | 4.42″ | 0.54″ | UNC | 800 | 0.14 | $27.96 |
|
|
| P0101-BD10 | 3/8″ | 3.50″ | 0.67″ | 4.75″ | 0.67″ | UNC | 1,200 | 0.19 | $39.56 |
|
|
| P0101-BD13 | 1/2″ | 4.75″ | 0.79″ | 6.10″ | 0.79″ | UNC | 2,200 | 0.28 | $58.06 |
|
|
| P0101-BD16 | 5/8″ | 5.50″ | 1.08″ | 7.53″ | 1.08″ | UNC | 2,800 | 0.68 | $130.88 |
|
|
| P0780-BD05 | 3/16″ | 3.00″ | 0.39″ | 3.65″ | 0.39″ | UNF | 300 | 0.06 | $11.34 |
|
|
| P0780-BD07 | 1/4″ | 3.50″ | 0.39″ | 4.22″ | 0.39″ | UNF | 440 | 0.07 | $23.22 |
|
|
| P0780-BD09 | 5/16″ | 3.50″ | 0.54″ | 4.42″ | 0.54″ | UNF | 800 | 0.14 | $30.15 |
|
|
| P0780-BD10 | 3/8″ | 3.50″ | 0.67″ | 4.75″ | 0.67″ | UNF | 1,200 | 0.19 | $39.20 |
|
|
| P0780-BD13 | 1/2″ | 4.75″ | 0.79″ | 6.10″ | 0.79″ | UNF | 2,200 | 0.28 | $62.82 |
|
|
| P0780-BD16 | 5/8″ | 5.50″ | 1.08″ | 7.53″ | 1.08″ | UNF | 2,800 | 0.68 | $129.90 |
|
|
| P0780-BD20 | 3/4″ | 7.00″ | 1.32″ | 8.70″ | 1.32″ | UNF | 3,500 | 1.45 | $199.49 |
|
