Turnbuckle Jaw

Turnbuckle Jaw

The Stainless Turnbuckle Jaw features right- and left-hand UNC threads. It supports working load limits up to 3,500 lbs. Sizes range from 3/16″ to 3/4″ to fit different applications. These jaws work with the cast open Turnbuckle Body (P0105-BD series). 316 stainless steel provides strength and corrosion resistance for marine and industrial use.

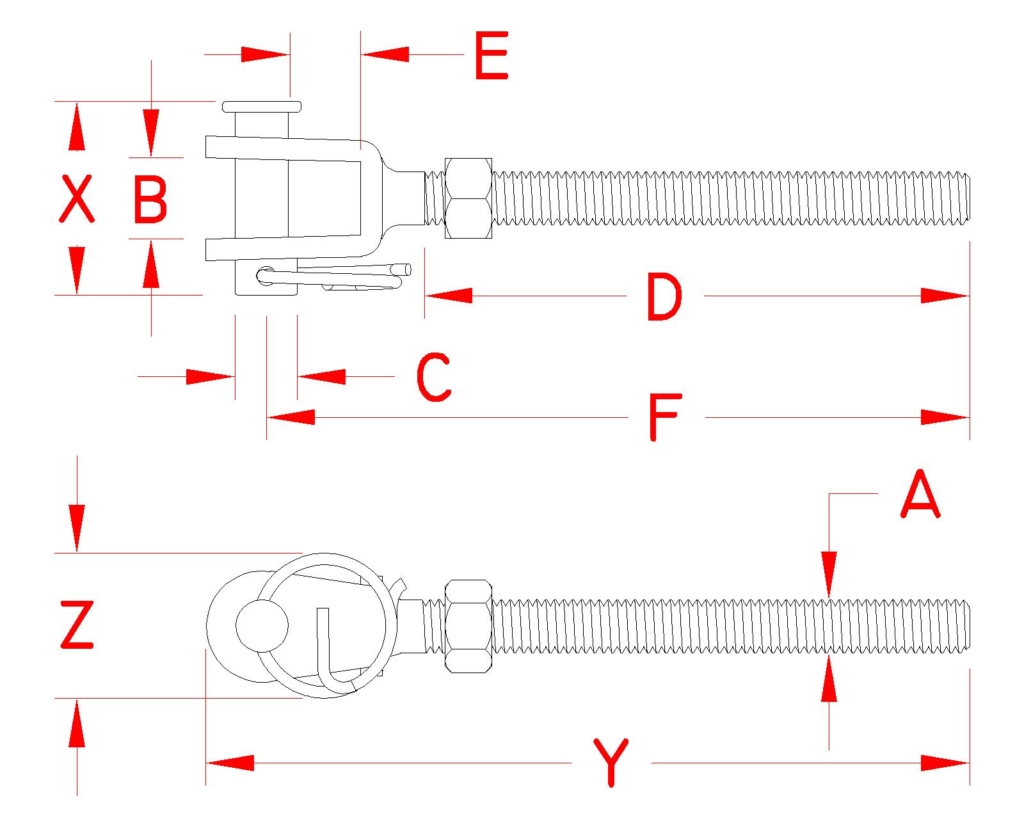

ITEMA (size)BCDEFXYZWLL (lb)WT (lb)Thread Type Price Quantity Add to Cart
P0105-RJ053/16″0.37″0.19″1.75″0.35″2.33″0.76″2.60″0.47″3000.04RH UNC$8.33
P0105-RJ071/4″0.41″0.23″2.21″0.38″2.87″0.82″3.12″0.54″4400.06RH UNC$10.60
P0105-RJ085/16″0.42″0.30″2.77″0.38″3.53″0.90″2.77″0.63″8000.11RH UNC$13.63
P0105-RJ103/8″0.54″0.38″4.02″0.48″4.98″1.22″5.37″0.79″1,2000.23RH UNC$22.92
P0105-RJ131/2″0.71″0.46″4.15″0.76″5.58″1.39″6.00″0.97″2,2000.41RH UNC$36.11
P0105-RJ165/8″0.73″0.62″5.38″0.86″7.35″1.59″8.16″1.40″2,8000.96RH UNC$49.77
P0105-RJ203/4″0.86″0.75″6.50″1.15″9.04″1.74″10.03″1.67″3,5001.41RH UNC$73.49
P0105-LJ053/16″0.37″0.19″1.75″0.35″2.33″0.76″2.60″0.47″3000.04LH UNC$8.33
P0105-LJ071/4″0.41″0.23″2.21″0.38″2.87″0.82″3.12″0.54″4400.06LH UNC$9.81
P0105-LJ085/16″0.42″0.30″2.77″0.38″3.53″0.90″2.77″0.63″8000.11LH UNC$14.67
P0105-LJ103/8″0.54″0.38″4.02″0.48″4.98″1.22″5.37″0.79″1,2000.23LH UNC$22.92
P0105-LJ131/2″0.71″0.46″4.15″0.76″5.58″1.39″6.00″0.97″2,2000.41LH UNC$33.59
P0105-LJ165/8″0.73″0.62″5.38″0.86″7.35″1.59″8.16″1.40″2,8000.96LH UNC$49.77
P0105-LJ203/4″0.86″0.75″6.50″1.15″9.04″1.74″10.03″1.67″3,5001.41LH UNC$73.49
